| Brand Name: | OLLIN PV |
| Model Number: | OL-72P-80 |
| MOQ: | one unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

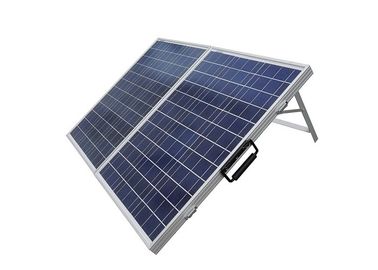

90watt Poly folding solar panel with lock and handle anodized aluminum alloy frame
Solar Module
1. Rated Maximum Power 90W
2. Current at Pmax (lmp) 5.18A
3. Volatage at Pmax (Vmp) 17.4V
4. Short - Circuit Current(lsc) 5.76A
5. Open - Circuit Voltage( Voc) 21.4V
6. Max System V 1000V
7. Max Senes Fuse Rating 10A
8. Application Class A
9. Nominal Operating Cell Temp -40 ℃ TO + 85℃
10.
Temperature coefficients of Isc (%) 0.065 + / - 0.015% / °C
11. Temperature coefficients of Voc (%) - ( 2.23 + / - 0.1 ) mv / °C
12. Temperature coefficients of Pm (%) - ( 0.5 + - 0.05 ) / °C
13. Temperature coefficients of Im (%) + 0.1 / °C
14. Temperature coefficients of Vm (%) -0.38/ °C
| Model No. | Power | Voc | Isc | Vmp | Imp | Weight(Kg) | Accessories |
|---|---|---|---|---|---|---|---|
| OL-PV-60W | 60W | 22.4 | 3.66 | 18 | 3.34 | 8 | 1. Battery cable |
| OL-PV-80W | 80W | 22.4 | 4.85 | 18 | 4.45 | 9 | 2.Anderson Connector |
| OL-PV-120W | 120W | 22.4 | 7.35 | 18 | 6.68 | 16 | 3. MPPT 10A/15A CONTROLLER |
| OL-PV-180W | 180W | 22.4 | 11.02 | 18 | 10.02 | 18 | |
| OL-PV-240W | 240W | 22.4 | 14.67 | 18 | 13.37 | 27 |
SOLAR ELECTRIC POWER GENERATION
Solar Electric Power can be generated varying from 100 Watts small solar home systems to 100 MW Solar
Power Plants or sometimes more than that. The solar power systems are of two types; one is off-grid and
other is on-grid systems. In off-grid systems, the system has no link with Utility grid and components used in
Systems are Solar Panels, Charge Controllers, Inverters, Deep Cycle Batteries, mounting and electric
accessories. Solar Panels convert solar radiations into electric current and this current passes through
charge controllers which charges the battery by controlling current for the battery. Charge controllers
maintain control on charging the battery for its long life. So the DC power is stored in Batteries and this
stored energy is converted into AC Power to operate the AC appliances. The DC appliances can be
operated directly with the battery. So DC and AC load can be operated through a solar power system.
EFFICIENCY
• Low voltage - temperature coefficient allows higher power output at high-temperature condition
• High efficient, high reliable solar cells ensure our product output stability
|
|
| Brand Name: | OLLIN PV |
| Model Number: | OL-72P-80 |
| MOQ: | one unit |
| Price: | Negotiable |
| Packaging Details: | CARTON and Nylon bag |
90watt Poly folding solar panel with lock and handle anodized aluminum alloy frame
Solar Module
1. Rated Maximum Power 90W
2. Current at Pmax (lmp) 5.18A
3. Volatage at Pmax (Vmp) 17.4V
4. Short - Circuit Current(lsc) 5.76A
5. Open - Circuit Voltage( Voc) 21.4V
6. Max System V 1000V
7. Max Senes Fuse Rating 10A
8. Application Class A
9. Nominal Operating Cell Temp -40 ℃ TO + 85℃
10.
Temperature coefficients of Isc (%) 0.065 + / - 0.015% / °C
11. Temperature coefficients of Voc (%) - ( 2.23 + / - 0.1 ) mv / °C
12. Temperature coefficients of Pm (%) - ( 0.5 + - 0.05 ) / °C
13. Temperature coefficients of Im (%) + 0.1 / °C
14. Temperature coefficients of Vm (%) -0.38/ °C
| Model No. | Power | Voc | Isc | Vmp | Imp | Weight(Kg) | Accessories |
|---|---|---|---|---|---|---|---|
| OL-PV-60W | 60W | 22.4 | 3.66 | 18 | 3.34 | 8 | 1. Battery cable |
| OL-PV-80W | 80W | 22.4 | 4.85 | 18 | 4.45 | 9 | 2.Anderson Connector |
| OL-PV-120W | 120W | 22.4 | 7.35 | 18 | 6.68 | 16 | 3. MPPT 10A/15A CONTROLLER |
| OL-PV-180W | 180W | 22.4 | 11.02 | 18 | 10.02 | 18 | |
| OL-PV-240W | 240W | 22.4 | 14.67 | 18 | 13.37 | 27 |
SOLAR ELECTRIC POWER GENERATION
Solar Electric Power can be generated varying from 100 Watts small solar home systems to 100 MW Solar
Power Plants or sometimes more than that. The solar power systems are of two types; one is off-grid and
other is on-grid systems. In off-grid systems, the system has no link with Utility grid and components used in
Systems are Solar Panels, Charge Controllers, Inverters, Deep Cycle Batteries, mounting and electric
accessories. Solar Panels convert solar radiations into electric current and this current passes through
charge controllers which charges the battery by controlling current for the battery. Charge controllers
maintain control on charging the battery for its long life. So the DC power is stored in Batteries and this
stored energy is converted into AC Power to operate the AC appliances. The DC appliances can be
operated directly with the battery. So DC and AC load can be operated through a solar power system.
EFFICIENCY
• Low voltage - temperature coefficient allows higher power output at high-temperature condition
• High efficient, high reliable solar cells ensure our product output stability
