| Brand Name: | OLLIN PV |
| Model Number: | OL-36M-170 |
| MOQ: | one unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

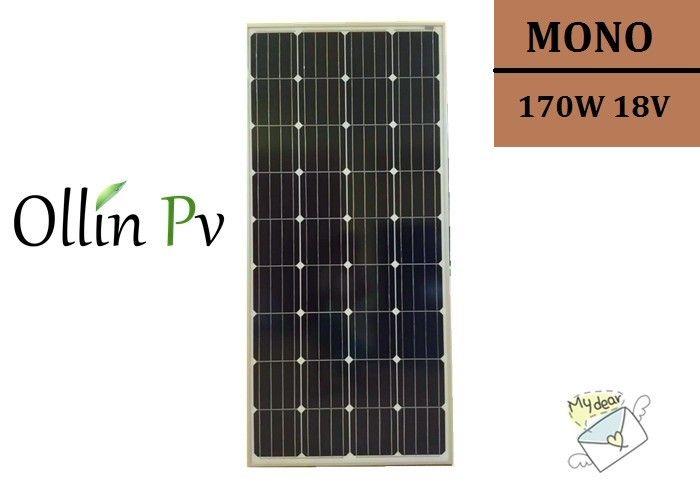

A grade B grade 1480*680*40mm solar panel 170w mono solar panel piece india OEM solar panel home
Product Specification
1. With advanced materials and equipment, our modules are designed and manufactured
in consistency with the IEC 61215:1993 standards which can guarantee the excellent electrical
performance and the product life of 25 years.
2. A film of PECVD is coated on the upper surface as anti-reflection measure, featuring deep blue color.
3. The modules are embedded with a sheet of imported strong transparent glass, two sheets
of long endurance EVA, a high efficiency monocrystalline cells sheet and a sheet of antihumidity
TPT for different weather conditions.
4. High quality anodized aluminum frame is suitable for strong wind resistance and mountain terrain.
5. A multifunction box ensure safe connection.
6. The exterior design and electrical performance of the module can meet the requirements of superior
quality.
| OLLIN-160M-180M | |||||||
| Monocrystalline Solar Module | |||||||
| Mechanical Data | |||||||
| Cell type | Mono125mm*125mm | ||||||
| No.of cells | 72 in series(6*12) | ||||||
| Dimensions | 1580*808*35mm | ||||||
| Weight | 12kg | ||||||
| Electrical Data | |||||||
| Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5) | |||||||
| Power | 160WM | 170WM | 180WM | ||||
| Open circuit voltage(Voc) | 42.5V | 42.5v | 42.6V | ||||
| Max. power voltage(Vmp) | 35.46V | 35.48V | 35.5V | ||||
| Short circuit current(Isc) | 4.83A | 8.96A | 9.28A | ||||
| Max. power current(Imp) | 4.44A | 8.3A | 8.58A | ||||
| A grade power Tolerance | ± 3% | ||||||
| Max.system voltage | 1000V | ||||||
| Operating temp. | —40℃~80℃ | ||||||
| Temperature coefficients of Pmax | -0.47% /℃ | ||||||
| Temperature coefficients of Voc | -0.38% /℃ | ||||||
| Temperature coefficients of Isc | +0.1% /℃ | ||||||
A Grade Polycrystalline Silicon Solar Cell
1) Fomat:156±0.5mm, diagonal 200±1.0mm
2) Average thickness: 195μm ±20μm
3) Front(-): 1.5mm bus bars(silver) Blue anti-reflecting coating(silicon nitride)
4) Back(+): 2.5mm wide soldering pads(silver) Back surface field(aluminum)
APPLICATIONS:
Solar power generating plant construction
Rural electrification,home solar systems
Power supply for tranffic signal light,security,gas industry
Battery charging system
Other industrial area,industrial and commercial applications
BIPV projects(hotel,hospital,villa,etc)
Design specially to meet our clients' demand for residential,commercial and industrial use
from small scale installations to multi-megawatt power plants.
FAQ
• Are you manufacturer or trading company?
--- we are a manufacturer & system integrator since Jan 2008.
• What kind of certification do you have?
--- Power from 3W to 315W with TUV,IEC61215/IEC61730,CEC,CE,PID,ISO
• What is the warranty of solar panels?
--- 5-year warranty on material and workmanship,90% power output in 10 years,20% in 25 years
• Can you quote me the best price?
---We need more information about your demands, such as the power/material/Qty/etc, then We can
suggest the suitable type and quote the best price for you.
