| Brand Name: | OLLIN PV |
| Model Number: | OL-72M-320 |
| MOQ: | one unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

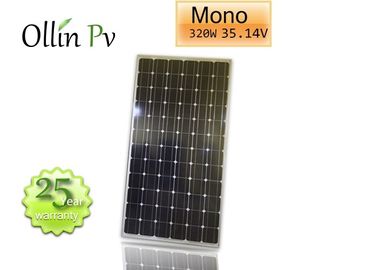

Solar Panel Solar Cell white frame solar panel 300w 320w 330w monocrystalline silicon solar module
Product Specification
1. With advanced materials and equipment, our modules are designed and manufactured
in consistency with the IEC 61215:1993 standards which can guarantee the excellent electrical
performance and the product life of 25 years.
2. A film of PECVD is coated on the upper surface as anti-reflection measure, featuring deep blue color.
3. The modules are embedded with a sheet of imported strong transparent glass, two sheets
of long endurance EVA, a high efficiency monocrystalline cells sheet and a sheet of antihumidity
TPT for different weather conditions.
4. High quality anodized aluminum frame is suitable for strong wind resistance and mountain terrain.
5. A multifunction box ensure safe connection.
6. The exterior design and electrical performance of the module can meet the requirements of superior
quality.
Specification sheet
| OLLIN-290M-330M | |||||||
| Monocrystalline Solar Module | |||||||
| Mechanical Data | |||||||
| Cell type | Mono 156mm*156mm | ||||||
| No.of cells | 72 in series(6*12) | ||||||
| Dimensions | 1950*992*45mm | ||||||
| Weight | 21kg | ||||||
| Electrical Data | |||||||
| Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5) | |||||||
| Power | 290WP | 300WP | 310WP | 320WP | 330WP | ||
| Open circuit voltage(Voc) | 42.5V | 42.5v | 42.6V | 42.6V | 42.6V | ||
| Max. power voltage(Vmp) | 35.46V | 35.48V | 35.5V | 35.5V | 35.5V | ||
| Short circuit current(Isc) | 8.68A | 8.96A | 9.28A | 9.58A | 9.8A | ||
| Max. power current(Imp) | 8.01A | 8.3A | 8.58A | 8.8A | 9.1A | ||
| A grade power Tolerance | ± 3% | ||||||
| Max.system voltage | 1000V | ||||||
| Operating temp. | —40℃~80℃ | ||||||
| Temperature coefficients of Pmax | -0.47% /℃ | ||||||
| Temperature coefficients of Voc | -0.38% /℃ | ||||||
| Temperature coefficients of Isc | +0.1% /℃ | ||||||
| Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||||
| Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||
| Temperature coefficients of Isc | +0.049% /℃ | ||||
| Temperature coefficients of Voc | -0.340% /℃ | ||||
| Temperature coefficients of Pmax | -0.430% /℃ | ||||
| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable. | ||||
What's the advantages of solar energy?
1.Solar energy is a clean and renewable resource.
2.No pollution, no noise and no effect on ecological balance during use.
3.High efficiency of energy conversion and long time sustainable use.
4.Low maintenance and repair costs.
5.Wide range of applications.(home and outdoor, industrial and commercial)
6.Low use of environmental requirements.(-30ºC~+80ºC, just need sunshine)
7.Easy to install and use.
Q1: How do you control the production quality?
A : 1.All products will have 5 layer's of QC before delivery.
2.Checking the raw material after they arrived in our factory.
3.Checking all the details while the production line operated.
4.Testing the products after they’re finished from productions.
5.Checking all the products and cartons after they’re packed.
6.Some products will have different QC processes but strict also.
Q2 : Do you accept OEM/ODM?
A : ODM&OEM are warmly welcomed !!!
Q4: Can the price be cheaper?
A: Of course, you will be offered a good discount for big amount.
Q5: What is your terms of payment?
A: 1.Sample: 100% of the sample cost before sampling.
2.Mass Production: 30% deposit in advance, 70% balance when finished.
3. Payment terms: usually T/T, also support LC, PayPal, etc
Q6: How about the delivery time?
A: 1.Sample ready in 7-15 days, depends on the requests.
2. Mass production ready in 15-30 days, depends on the qty & factory’s producing.
|
|
