| Brand Name: | OLLIN PV |
| Model Number: | OL-72P-160 |
| MOQ: | one unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

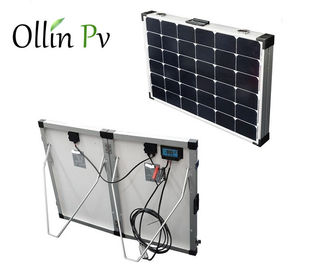

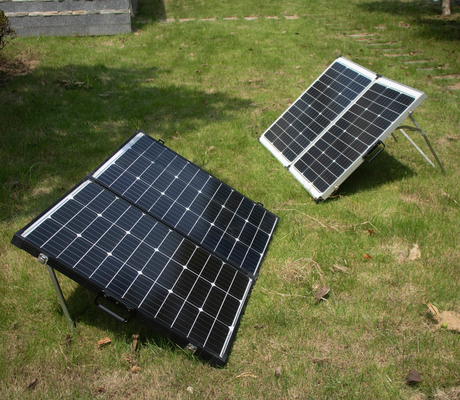

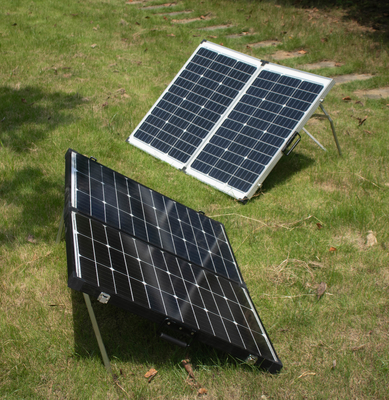

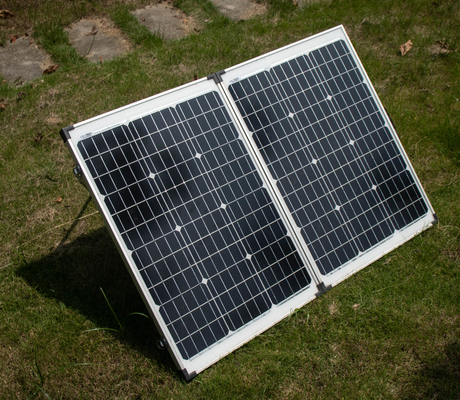

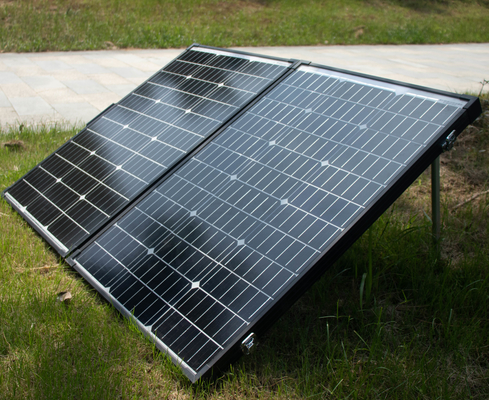

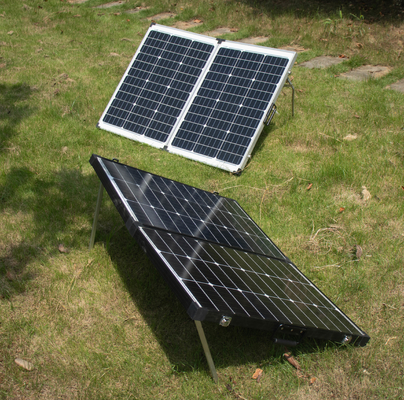

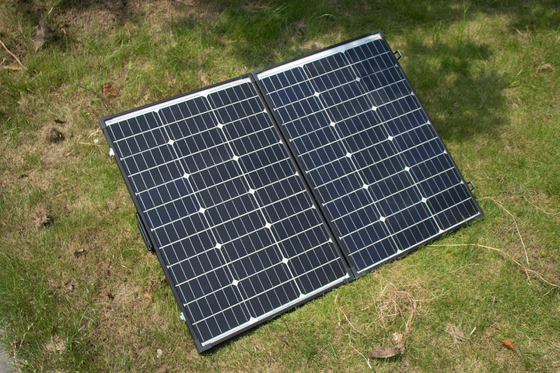

Portable out door 80watt Battery charging floding solar panels with form-padded bag with shoulder strap
Advantages of Folding Solar Panels
1, Easy to carry: form-padded bag with shoulder strap.

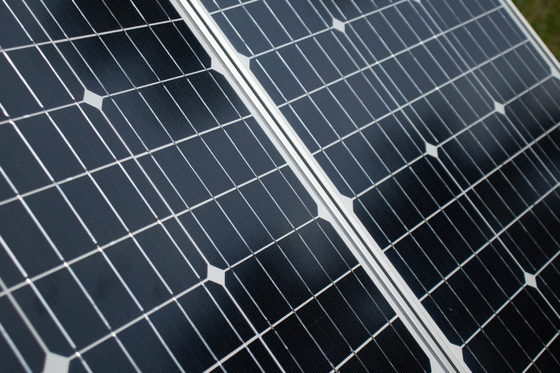

2, Mono crystalline cells: efficient absorber of sunlight.
3, Compatible: includes two of the most common connections.
4, Easy to use: no construction needed, comes ready to use.
5, Quality assured: lifetime output guaranteed.
6, Product support: ongoing expert level advice.
7, Price friendly:at a pocket-friendly price.
8, Clean and compact: eco-friendly, quite energy output
9, Flexible: mountable
10, German standard: guaranteed 0-10% more power
Parameters Table
| Model No. | Power | Voc | Isc | Vmp | Imp | Weight(Kg) | Accessories |
|---|---|---|---|---|---|---|---|
| OL-PV-60W | 60W | 22.4 | 3.66 | 18 | 3.34 | 8 | 1. Battery cable |
| OL-PV-80W | 80W | 22.4 | 4.85 | 18 | 4.45 | 9 | 2.Anderson Connector |
| OL-PV-120W | 120W | 22.4 | 7.35 | 18 | 6.68 | 16 | 3. MPPT 10A/15A CONTROLLER |
| OL-PV-180W | 180W | 22.4 | 11.02 | 18 | 10.02 | 18 | |
| OL-PV-240W | 240W | 22.4 | 14.67 | 18 | 13.37 | 27 |
| Specifcation | |
| Related power | 80W |
| Vop | 17.9V |
| Working current (Iop) | 4.44A |
| Output Tolerance | ±3% |
| Temperate coefficient of Isc | (010+/- 0.01 )%/ ℃ |
| Temperate coefficient of Voc | - (0.38 +/-0.01 )%/ ℃ |
| Temperate coefficient of power Voc | -0.47%/℃ |
| Temperature range | -40℃to +80℃ |
| Frame and leg | Heavy duty aluminum |
| SLA Battery Voltage | 12V |
| Dimensions (L x W x H)mm | 600*510*73mm(23.7*20.2*28.9in) |
| Weight (kgs) | 10.7kg(23.6lbs) |
Core Function
1. DC12V,DC 24V batery automatic adaptation
2. Battery charging temperature compensation function
3. Multiple battery protection function: Reverse connect, overcharge,overdischarge, open circuit,over-voltage,short circuit, over-current protection
4. Gen 4m electronic fuse double protection
5. Series PWM intelligent three stage charging algorithm
6. Thesolarenergy plate reverse connet, reverse charging protection
7. Three LED indicate the working
8. Double button set operation parameters
9. Waterproof IP67,irrigation glue
How Do Solar Panels Generate Electricity?
PV solar panels generate direct current (DC) electricity. With DC electricity, electrons flow in one direction around a circuit. This example shows a battery powering a light bulb. The electrons move from the negative side of the battery, through the lamp, and return to the positive side of the battery.
With AC (alternating current) electricity, electrons are pushed and pulled, periodically reversing direction, much like the cylinder of a car’s engine. Generators create AC electricity when a coil of wire is spun next to a magnet. Many different energy sources can “turn the handle” of this generator, such as gas or diesel fuel, hydroelectricity, nuclear, coal, wind, or solar.
AC electricity was chosen for the U.S. electrical power grid, primarily because it is less expensive to transmit over long distances. However, solar panels create DC electricity. How do we get DC electricity into the AC grid? We use an inverter.
|
|
