| Brand Name: | OLLIN PV |
| Model Number: | OL-72M-190 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |
190Watt Monocrystalline silicon Gird-connected power generation system used
190Wp Mono Crystalline Solar Panel
Key Features
1. High-transmittance low-iron tempered glass, anti-aging EVA, excellent weathering resistance TPT
2. Anodized quality aluminum frame, beautiful appearance
3. Wind resistance, pressure resistance, high conversion efficiency
Product field:
1. Gird-connected power generation system
2. Off-grid power generation system
3. Building-integrated power generation facilities
| ELECTRICAL PERFORMANCE | ||||||
| Module type | PLM-200M-72 | |||||
| Power output | W | 190 | 195 | 200 | 205 | 210 |
| Power output tolerances | % | 0-3 | ||||
| Voltage at Pmax | V | 36.83 | 37.43 | 37.89 | 38.19 | 38.47 |
| Current at Pmax | A | 5.16 | 5.21 | 5.28 | 5.37 | 5.46 |
| Open-circuit voltage | V | 45.02 | 45.26 | 45.48 | 45.65 | 45.80 |
| Short-circuit current | A | 5.56 | 5.62 | 5.66 | 5.73 | 5.81 |
| OPERATING CONDITIONS | ||||||
| Max.system voltage | 1000V | |||||
| Limiting reverse current | 15A | |||||
| Operating temperature range | -40℃ to 85℃ | |||||
| Max.static load front | 5400Pa | |||||
| Max.static load back | 2400Pa | |||||
| Max.hailstone impact (diameter/velocity) | 25mm/23m/s | |||||
| MECHANICAL CHARACTERISTICS | ||||||
| Front cover(material/thickness) | Low-iron tempered glass / 3.2mm | |||||
| Backsheet(color) | white | |||||
| Cell(quantity/material/dimensions) | 72 / monocrystalline silicon / 125*125mm | |||||
| Frame(material/color) | Anodized aluminum alloy / silver | |||||
| Junction box(protection degree) | >= IP65 | |||||
| Cable&Plug connectors | 900mm / 4mm² &MC4 compatitible / IP67 | |||||

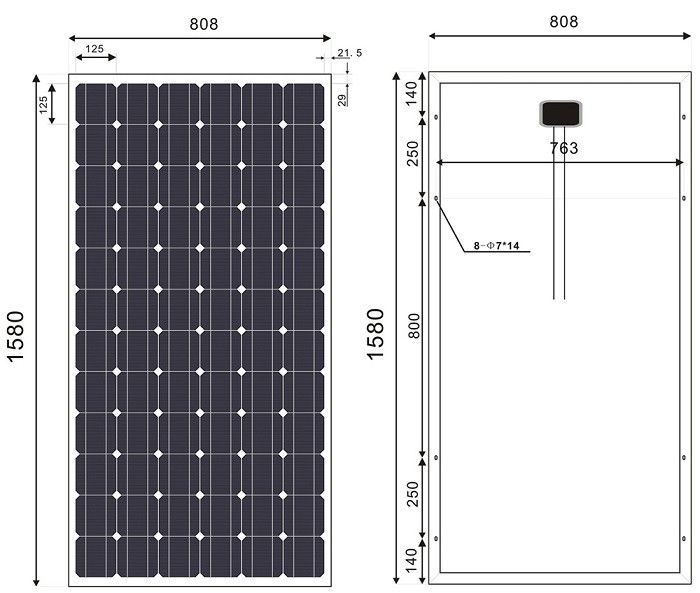

| Module Dimensions (L /W /H ) | 1580mm*808mm*35mm | |||||
| Module Weight | 15.0kg | |||||
Product features:
Monocrystalline Solar Panel will give you the most efficiency per space and have the ability to withstand extreme elements and severe weather . This monocrystalline panel is equipped with MC4 leads coming from the panel, compatible with MC4 Adaptor Cables so you can set up your system smoothly . This solar panel also has the capability of withstanding heavy snow and strong wind loads .
190W solar panel has several uses including marine , dry camp , and other off-grid applications. Whether you are going camping in the mountains or taking a trip to the beach , this panel can be a great start to your off-grid system .
Why Choose US?
1. Quality Focused
“Making Reliable Products” is the core business fundamental of OLLIN PV. We implement an IEC complied quality system in the production for the unique purpose: OLLIN PV ONLY DELIVER RELIABLE SOLAR PRODUCTS. For more details please refer to OLLIN PV Quality Control System.
2. Customer-centric Services
OLLIN PV rounds out its service portfolio based on every customer’s demands, because we think the customer’s satisfaction is the motive force of growth for the company. Our skilled R&D engineers and customer support teams are always prepared to provide all-round services for our clients.
3. ISO Accredited Factory
With total area of 15000 m2, OLLIN PV’s manufacturing factory operates under the ISO 9001 and ISO 14001 accredited management systems, which ensure the outstanding quality of our solar products and therefore guarantee the benefits of our clients.
4. System-wide Solutions
In association with partners, OLLIN PV provides complete components for both on-grid and off-grid PV systems: from solar panels to batteries, combiner boxes, inverters, cables and mounting structures. This enables us to offer more customized PV solutions to our clients based on their various requests.
5. Professional Team
OLLIN PV is created and managed by an experienced team recognized for their passion, professionalism and integrity. All of our executives have outstanding background in solar product manufacturing, corporate governance and international marketing. We work together every day for our aspirations: bringing better product experience to the clients, creating a world-wide respected brand and turning the business success of the company into the professional satisfaction of our employees.
video
video
video
video
video
video
video
video
|
|
