| Brand Name: | OLLIN PV |
| Model Number: | OL-36M-100 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

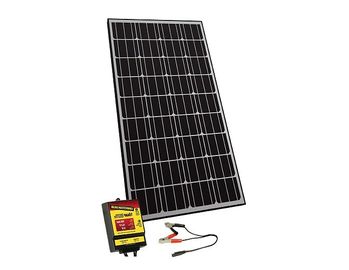

100W Monocrystalline Solar Module with black frame used for water pump solar boiler
Product Description
- High efficiency crystalline solar cell; Long lifetime span: 25 years;
- Less power decrease: Decrease in peak power of the solar modules shall be below 8% within the first 10
years and within the first 20 years shall be below 10%;
- Advanced surface texturing process increases light absorption and efficiency;
- Sealed modules with tempered glass, high transmit rate and strong mechanical resistance; EVA resin, and
a waterproof film, plus aluminum frame for extended outdoor use.
Detailed Product Description
| Mechanical Data | |||||||
| Cell type | Mono156mm*114mm | ||||||
| No.of cells | 36 in series(4*9) | ||||||
| Dimensions | 1100*670*30mm | ||||||
| Weight | 7kg | ||||||
| Electrical Data | |||||||
| Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5) | |||||||
| Power | 80WM | 90WM | 100WM | ||||
| Open circuit voltage(Voc) | 21.5V | 21.5v | 21.6V | ||||
| Max. power voltage(Vmp) | 17.46V | 17.48V | 17.5V | ||||
| Short circuit current(Isc) | 4.78A | 5.4A | 5.99A | ||||
| Max. power current(Imp) | 4.4A | 5.1A | 5.55A | ||||
| Maximum System Voltage | DC1000V | |||||||||
| Temperature Coefficient of Voc | -0.27%/°C | |||||||||
| Temperature Coefficient of Isc | +0.045%/°C | |||||||||
| Temperaturecoefficient of Pmax | -0.408%/°C | |||||||||
| Maximum Series Fuse Rating | 15A | |||||||||
| Junction Box | Ip67 rated/with 6 bypass diodes | |||||||||
| Cable | 4.0mm2 (0.006inches2,symmetrical lengths(-)1100mm(43.30inches)and(+)1100mm(43.30inches)) |
|||||||||
| Tempered Glass | 3.2mm(0.13inches)tempered glass | |||||||||
| Cell Encapsulation | EVA(Ethylene-vinyl-Acetate) | |||||||||
| Back Sheet | composite film | |||||||||
| Frame | Anodized aluminum alloy | |||||||||
| Dimension | 1957*992*50mm(77.05*39.06*1.97inches) | |||||||||
| Maximum Surface Load Capacity | 5400pa | |||||||||
| Hail | maximun diameter of 25mm with impact speed of 23m-s-1 | |||||||||
| Temperature Range | -40°C to + 85°C | |||||||||
| Weight | 23.0kg(50.7bs) | |||||||||
Our Services
1. OEM service is welcome.
2. We will provide all the details to you during the mass production.
3. Customize your mould according to your need.
4. Your requirements and complaints are highly respected.
5. Necessary test and certification can be obtained as your request.
FAQ
1. Q: How do I pay for my purchase order?
A: 100% T/T
2. Q: How can I get sample and how long will it takes?
A: Sample fee will doutbed, but we will return the extra money after you place an order to us, It usually takes
7-10days to produce a sample.
3. Q: What's the MOQ?
A: Depend customer's demand.
4. Q: What's the time delivery?
A: It will take about 5-10 days to finish an order. But the exact time is according to actual situation.
5. Q: Can I have my own customized product?
A: Yes, your customized requirements for color, logo, design, package,shipping marks etc are available.
6. Q: Do you have quality control?
A: Yes, we take great control of the quality.
