| Brand Name: | OLLIN PV |
| Model Number: | OL-72M-120 |
| MOQ: | one unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

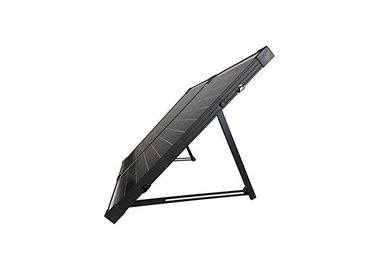

all black color 120Watt Mono folding solar panel with heavy duty padded carry bag
Product Information:
Identification
mono-crystalline folding solar panels with sturdy aluminum frame
heavy duty aluminumn handle*2
heavy duty steel safety fasteners*2
adjustable and strong support legs*2 with anti-slip rubber feet
MPPT WATER-PROOF CONTROLLER 12V/24V with LED indications
5-meter lead with MC4 male and female connectors and alligator clamps
connecting cable with connectors to 5-meter lead
Specs:
1. 60w*2pcs,total 120w output power for charging
2. 10A,12V solar charge controller
3. 5 Merters cable
| Type | Folded size | Weight | Specification | ||||
| Max-power | Volatage at Pmax | Current at Pmax | Open- Circuit Voltage |
Short- Circuit Current |
|||
| Module | MM | KG | W | V | A | V |
A |
| OLPV-200W | 1200*540*70 | 20 | 200 | 18 | 10.53 | 22 |
11.37 |
| OLPV-190W | 190 | 18 | 10.15 | 22 |
10.96 |
||
| OLPV-180W | 180 | 18 | 9.62 | 22 |
10.38 |
||
| OLPV-170W | 1000*540*70 | 16 | 170 | 18 | 9.44 | 22 |
10.2 |
| OLPV-160W | 160 | 18 | 8.89 | 22 |
9.6 |
||
| OLPV-150W | 150 | 18 | 8.33 | 22 |
9 |
||
| OLPV-120W | 810*540*70 | 14 | 120 | 18 | 6.67 | 22 |
7.2 |
| OLPV-110W | 110 | 18 | 6.11 | 22 |
6.6 |
||
| OLPV-100W | 610*540*60 | 10 | 100 | 18 | 5.56 | 22 |
6 |
| OLPV-90W | 90 | 18 | 5 | 22 |
5.4 |
||
| OLPV-80W | 80 | 18 | 4.44 | 22 |
4.8 |
||
| OLPV-60W | 420*540*60 | 9 | 60 | 18 | 3.33 | 22 |
3.6 |
Note:
(1) solar panels in the back of the production line will mark scraping gum residue is normal and does not
affect the use of power
(2) Note that when using the included, do not use a hard object bump the panel surface, one side affect the
appearance and life
How to choose the correct voltage for your products:
Basic principle:
(1) The solar panel voltage is best to be 1.5times higher than the storage battery, in order to fully charge the
battery, such as:
3.7V Lithium Battery ===== 3.7*1.5=5.55V. =====> The optium voltage for solar panel charging this lithium
battery is 5.5V, you can choose 6V. Voltage lower than 5V is not a good idea for fast charging;
12V Lead acid battery ==== 12V*1.5=18V ====> The optium voltage for solar panel is 18V, 17.5V is also
OK. But voltage lower than 17V will not be a good idea for fast charging.
(2) The voltage of solar panel is not the higher, the better, because during our R&D, we must consider the
charging current, and the battery protection. If the charging voltage is too high, the battery might be
damaged. And when the voltage is too high, the charging current would be weak, and the charging speed
would become too slow.
3.7V Lithium Battery ===== The solar panel voltage better not be higher than 6V.
12V Lead acid battery ===== The solar panel voltage better not be higher than 18V, because of the above
two reasons.
Do you understand above now, please? If there is any other question, you can feel free to ask me anytime.
