| Brand Name: | OEM |
| Model Number: | OEM |
| MOQ: | 1unit |
| Price: | Negotiable |
| Delivery Time: | 20days |

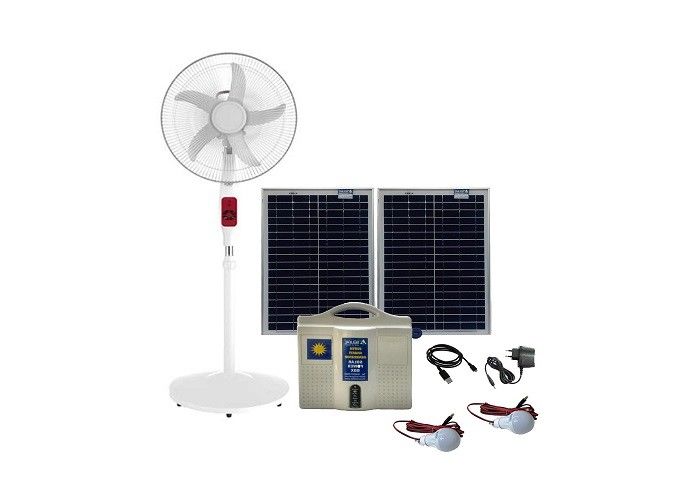

80w Portable Solar Panel Charger Solar lighting system supply electric for hiking camping Desert travel
Product features:
1. Green energy
2. The whole system's structure is simple . Easy to operate
3. With long-life solar panel--more than 20 years
4. Automatic lighting controller :with adjustable run times, over-current protection
5. Solar Batteries: Maintenance free, long life batteries
6. Its main use is general household use system .
7. Flexible designs per client requests.
Specifications:
| Spare Parts | Power | 80W | Poly Crystalline | |
| Voltage | 12V | |||
| LED lamp | 3W | 6 pieces | ||
| LED lamp output line | 3m | 6 pieces | ||
| System connect line | 5m | 1 piece | ||
| Power Station | Battery | 12V/35Ah | 1 piece | |
| LED output | 6 pieces | |||
| USB output | 5V/1000mA | 1 piece | ||
| LED display | DC/AC | |||
| Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||||
| Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||
| Temperature coefficients of Isc | +0.049% /℃ | ||||
| Temperature coefficients of Voc | -0.340% /℃ | ||||
| Temperature coefficients of Pmax | -0.430% /℃ | ||||
| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable. | ||||
Appliance
Easy to Carry
Battery comes with a hook so you can simply attach it to your backpack when in outdoor and it will soak up
energy from sun. Elegant small and portable easy to use.
Dual USB Ports
Two USB output can charge two devices at the same time, also compatible with most 5V USB-Charged
devices like smart phones, tablets, Kindles, Camera, GPS, Bluetooth Speaker and many other electronic
devices.
LED Flashlight & SOS emergency flashlight Function
Built-in LED can be used as a torch, or as emergency lighting in darkness, the flashing light mode can be
used as SOS.
Widely compatible
Compatible with most 5V USB-Charged devices like smart phones, tablets, Kindles, Camera, GPS,
Bluetooth Speaker and many other electronic devices.
High Quality
The best eco-friendly silicone protects it from rain, dirt, shock or drops. It uses lithium polymer batteries with
10000mAh.
Equipped with over-charge protection system. Over 1000+ recharge life cycle.
FAQ
Q1 Are you a factory or trading company?
A Yes, we are factory, supplying OEM/ODM service.
Q2 Can you accept OEM service?
A Yes, we can. Qty is not the only standard , more qty, less cost.
Q3 How about your after sales-service?
A 1.Guarantee time: one year, but solar panel 10 years
Q4 How about your payment terms?
A We accept T/T, LC
Q5 What certification do you have?
A 1.CE, 2.According to your need , do the certification or report , if you have a big order.
|
|
