| Brand Name: | OEM |
| Model Number: | OEM |
| MOQ: | 1unit |
| Price: | Negotiable |
| Delivery Time: | 20days |

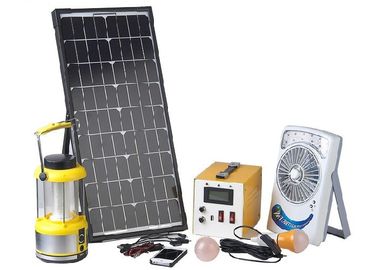

Portable Solar Panel Charger Systems charged for electric fans computers phones lights
Features
Monocrystalline silicon solar panel with high efficient rate of 18%
Advanced Lithium cell with 1000 recharge cycles
Over current, over voltage, over charge, over discharge, over temperature and shortcut protection
4 USB ports can charge the major types of USB devices on the market, e.g smart phone, PAD, MP3 and
digital camera.
Two years warranty
Detailed Product Description
| Module Type | OLPV130W | OLPV140W | OLPV150W | OLPV160W | OLPV165W |
| Maximum power | 130 W | 140 W | 150 W | 160 W | 165 W |
| Max power voltage | 17.50 V | 17.70 V | 17.90 V | 18.10 V | 18.20 V |
| Max power current | 7.43 A | 7.92 A | 8.38 A | 8.84 A | 9.06 A |
| Open circuit voltage | 21.50 V | 21.70 V | 21.90 V | 22.10 V | 22.30 V |
| Short circuit current | 7.96 A | 8.49 A | 9.01 A | 9.53 A | 9.74 A |
| Module Efficiency | 13.13% | 14.14% | 15.15% | 16.16% | 16.67% |
| Power Tolerance | -0~+5W | -0~+5W | -0~+5W | -0~+5W | -0~+5W |
| Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||||
| Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||
| Temperature coefficients of Isc | +0.049% /℃ | ||||
| Temperature coefficients of Voc | -0.340% /℃ | ||||
| Temperature coefficients of Pmax | -0.430% /℃ | ||||
| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable. | ||||
What is a PV system?
A PV system consists of all the equipment and materials needed to generate solar energy, including solar
panels (often called modules), a support structure, wiring, an inverter, a meter and other equipment as
required by a specific application. JUST-SOLAR's PV system for commercial buildings, and ET Solar system
for residential uses are examples of complete PV systems.
FAQ
Q: Can I have samples of this powerbank to test the quality?
A: Yes.
Q: Can I customize the packaging,logo,color etc.?
A: Yes.
Q: What is the MOQ for OEM service?
A: 1pc.
Q:Will any security risk be caused when people using your power bank?
A: No! We use high quality batteries, and chip protection inside for short circuit, over
voltage/charger/discharge.
Q: Can I visit your factory?
A: Yes,welcome to our factory to have a visit.
Q: How long warranty period for your products?
A: 1 year. If there is no man-made damage, we will take on the shipping cost and replacement.
Q: How can I make the order from you?
A: Pls send us your order qty, color and more detailed request to us,we'll send the order invoice with all
trade info for your ref and confirmation.
|
|
