| Brand Name: | OLLIN PV |
| Model Number: | OL-36P-5 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

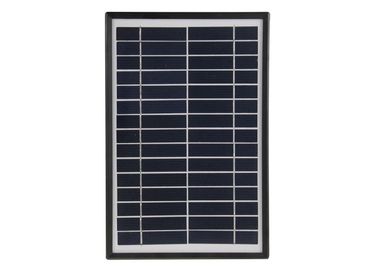

black color metel frame with plastic steady 5watt poly PV solar panels charging for solar tracking device
Features:
High modules conversion efficiency.
Guaranteed Positive Output Tolerance (0-3%).
Withstand high wind (2400Pa) and snow loads (5400Pa).
Excellent performance in low light environments.
Renogy solar panels are framed in heavy duty anodized extruded aluminum with drainage/mounting holes
and generate Excellent performance in low light environments.
Electrical Characteristics
| ITEM NO | 5W/18V |
| MONO or POLY | poly |
| Maximum power (Wp) | 5wp |
| Maximum power voltage (V) | 18 |
| Maximum power current (A) | 0.27 |
| Open circuit voltage (V) | 21.6 |
| Short circuit current (A) | 0.29 |
| Number of cells (Pcs) | 36 |
| Size of module (mm) | 280 x 185 x 18 |
| Brand Name of Solar Cells | HT |
| Maximum system voltage (V) | 715 |
| Temperature coefficients of Isc (%) | 0.065+/-0.015%/°C |
| Temperature coefficients of Voc (%) | -(2.23+/-0.1)mv/ °C |
| Temperature coefficients of Pm (%) | -(0.5+-0.05)/ °C |
| Temperature coefficients of Im (%) | +0.1/ °C |
| Temperature coefficients of Vm (%) | -0.38/ °C |
| Temperature Range | -40°C~+85°C |
| Tolerance Wattage (e.g. +/-5%) | +/-5% |
| Surface Maximum Load Capacity | 60m/s(200kg/sq.m) |
| Allowable Hail Load | steel ball fall down from 1m height |
| Weight per piece (kg) | 0.8 |
| Length of Cables (mm) | 3m |
| Cell Efficiency (%) | more than13% |
| Module Efficiency (%) | more than 8% |
| Output tolerance (%) | +/-5% |
| Frame (Material, Corners, etc.) | Aluminum |
| Standard Test Conditions | AM1.5 100mw/cm2 25°C |
| Warranty | 2 years product warranty and 25years 80% of power |
| FF (%) | 75% |
| Packing | 10PCS/ CTN |
| Unit Price |
Reliable Quality
---Perfect for charging 12V battery and DC load.
---Easy to carry for camping or other outdoor activities.
---Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as
well as withstand high winds (2400Pa) and snow loads (5400Pa).
How Solar Panels Work
Other Basic Components You Need for Complete 12 Volts Solar Panel Kit
---Charge Controller
---12V Battery (Pls make sure your battery voltage is higher than 10.8 volts before connecting to the charge
controller, and the safe charging voltage of battery is below 13.86 volts)
---DC Load You Might Have
video
|
|
