| Brand Name: | OLLIN PV |
| Model Number: | OL-60P-280 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

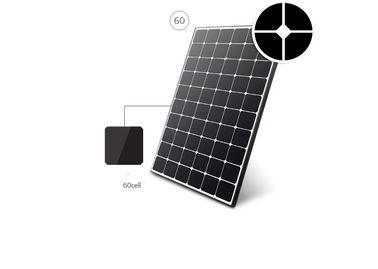

black color Aluninium frame 280watt mono Solar Panel Solar Cell charging for Solar water Pumping
Features:
High reliability with guaranteed 0% to +5% power output tolerance ,ensuring return on
investment
High conversion efficiency based on leading innovative photovoltaic technologies
Withstands high wind-pressure and snow load,and extreme temperature variations
Unique frame design, high mechanical strength, and easy Installation
Electrical Characteristics
| Type | M325 | M320 | M315 | M310 | 305 | M300 | M295 | M290 | M285 | M280 |
| Wattage(W) | 325 | 320 | 315 | 310 | 305 | 300 | 295 | 290 | 285 | 280 |
| Open Circuit Voltage(V) | 45.30 | 45.20 | 45.10 | 45 | 44.9 | 44.8 | 44.6 | 44.5 | 44.4 | 44.2 |
| Short Circuit Current(I) | 8.87 | 8.79 | 8.71 | 8.97 | 8.87 | 8.8 | 8.73 | 8.67 | 8.6 | 8.49 |
| Maximum Power Voltage(V) | 37.00 | 36.80 | 36.60 | 36.4 | 36.2 | 36.1 | 35.9 | 35.8 | 35.7 | 35.5 |
| Maximum Power Current(I) | 8.78 | 8.70 | 8.61 | 8.52 | 8.43 | 8.32 | 8.22 | 8.11 | 7.99 | 7.89 |
| Cell Efficiency | 18.90% | 18.60% | 18.31% | 18.02% | 17.73% | 17.44% | 17.15% | 16.86% | 16.57% | 16.28% |
| Module Efficiency | 16.63% | 16.48% | 16.23% | 15.97% | 15.71% | 15.45% | 15.20% | 14.94% | 14.68% | 14.42% |
| Maximum System Voltage | DC1000V | |||||||||
| Temperature Coefficient of Voc | -0.27%/°C | |||||||||
| Temperature Coefficient of Isc | +0.045%/°C | |||||||||
| Temperaturecoefficient of Pmax | -0.408%/°C | |||||||||
| Maximum Series Fuse Rating | 15A | |||||||||
| Number of Cells | 72(6*12) Mono Crystalline silicon, 156*156mm(6 inches) | |||||||||
| Junction Box | Ip67 rated/with 6 bypass diodes | |||||||||
| Cable | 4.0mm2 (0.006inches2,symmetrical lengths(-)1100mm(43.30inches)and(+)1100mm(43.30inches)) |
|||||||||
| Tempered Glass | 3.2mm(0.13inches)tempered glass | |||||||||
| Cell Encapsulation | EVA(Ethylene-vinyl-Acetate) | |||||||||
| Back Sheet | composite film | |||||||||
| Frame | Anodized aluminum alloy | |||||||||
| Dimension | 1957*992*50mm(77.05*39.06*1.97inches) | |||||||||
| Maximum Surface Load Capacity | 5400pa | |||||||||
| Hail | maximun diameter of 25mm with impact speed of 23m-s-1 | |||||||||
| Temperature Range | -40°C to + 85°C | |||||||||
| Weight | 23.0kg(50.7bs) | |||||||||
Our Sevice:
1. We have our own factory with professional for solar panel and system over 8 years.
2. We have a strong R&D team.
3. Offering OEM service for your order.
4. Reply within 12 hours.
5. Offering competitive price, good after-sales service.
FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory and we have our own foreign trade department.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in yuyao city, zhejiang province, China,You are warmly welcomed to visit us!
3. Q: Can the price be cheaper?
A: Of course, you will be offered a good discount for big amount. The most reasonable price will be provided
to meet your requirements!
4. Q: Do you have solar project engineer who can guide me to install system?
A: Yes, we have a professional engineers team. They can teach you how to install a solar system.
Why Choose Us?
1. Golden supplier approved by MIC.
2. Supply suitable price and high quality product.
3. Offer free samples before order confirmed.
4. Commitment to delivery on time.
5. Offer a perfect pre-sale and after sale service.
6. Providing fast and economical transportation solutions.
7. We guarantee that the product is 100% compensated.
8. Providing product certificate,instructions and installation method.
9. Long-term cooperative attitude and the concept of development together.
10. A professional R&D team with 8 years history and Perfect quality management system.
|
|
