| Brand Name: | OLLIN PV |
| Model Number: | OL-36M-20 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

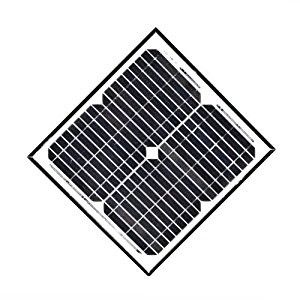

black color frome 20watt 30watt Monocrystalline Solar Module charging for garden light system 12v battery
Features:
---High efficiency solar cell ensures high performance of solar module and creates more power in peak
hours
---Anti-reflecting coating and high transmission rate glass increases the power output and mechanical
strength of solar module Aluminum frame
---Torsion and corrosion-resistant anodized frame ensures dependable performance, even though harsh
weather conditions
---Lightweight and pre-drilled mounting holes for easy installation Water-resistant junction box
---Designed specially to meet customers' demands for residential, commercial and industrial use.
Specifications:
| OLLIN-10P-20P | |||||||
| Polycrystalline Solar Module | |||||||
| Mechanical Data | |||||||
| Cell type | Polycrystalline | ||||||
| No.of cells | 36 in series(4*9) | ||||||
| Dimensions | 480*340*25mm | ||||||
| Weight | 2.2kg | ||||||
| Electrical Data | |||||||
| Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5) | |||||||
| Power | 10WP | 15WP | 20WP | ||||
| Open circuit voltage(Voc) | 21.5V | 21.5v | 21.6V | ||||
| Max. power voltage(Vmp) | 17.46V | 17.48V | 17.5V | ||||
| Short circuit current(Isc) | 0.6A | 0.9A | 1.2A | ||||
| Max. power current(Imp) | 0.56A | 0.83A | 1.1A | ||||
| A grade power Tolerance | ± 3% | ||||||
| Max.system voltage | 1000V | ||||||
| Operating temp. | —40℃~80℃ | ||||||
| Temperature coefficients of Pmax | -0.47% /℃ | ||||||
| Temperature coefficients of Voc | -0.38% /℃ | ||||||
| Temperature coefficients of Isc | +0.1% /℃ | ||||||
| Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||||
| Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||
| Temperature coefficients of Isc | +0.049% /℃ | ||||
| Temperature coefficients of Voc | -0.340% /℃ | ||||
| Temperature coefficients of Pmax | -0.430% /℃ | ||||
| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable. | ||||
What's the advantages of solar energy?
1. Solar energy is a clean and renewable resource.
2. No pollution, no noise and no effect on ecological balance during use.
3. High efficiency of energy conversion and long time sustainable use.
4. Low maintenance and repair costs.
5. Wide range of applications.(home and outdoor, industrial and commercial)
6. Low use of environmental requirements.(-30ºC~+80ºC, just need sunshine)
7. Easy to install and use.
Why Choose Us?
1. Golden supplier approved by MIC.
2. Supply suitable price and high quality product.
3. Offer free samples before order confirmed.
4. Commitment to delivery on time.
5. Offer a perfect pre-sale and after sale service.
6. Providing fast and economical transportation solutions.
7. We guarantee that the product is 100% compensated.
8. Providing product certificate,instructions and installation method.
9. Long-term cooperative attitude and the concept of development together.
10. A professional R&D team with 9 years history and Perfect quality management system.
