| Brand Name: | OLLIN PV |
| Model Number: | OL-36m-45 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

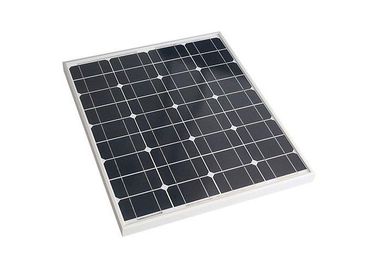

45W monocrystalline PV Solar Panel Solar Cell charge for solar boat light, solar monitor with white frame
Monocrystalline Solar Module
Using only the best quality materials to provide high quality solar modules
1. High efficiency solar cells with high transmission and low iron textured glass
delivering high efficiency modules
2. Bypass diode minimizes the power drop caused by shading
3. Tempered glass,EVA resin,and weatherproof film,plus aluminum frame for
extended outdoor use
4. Modules independently tested to ensure conformance with certification and
regulatory standards
5. Manufacturering facility certified to ISO 9001 quality management system
sandards
| OLLIN-35P-45P | |||||||
| monocrystalline Solar Module | |||||||
| Mechanical Data | |||||||
| Cell type | monocrystalline | ||||||
| No.of cells | 36 in series(4*9) | ||||||
| Dimensions | 625x530x25mm | ||||||
| Weight | 4kg | ||||||
| Electrical Data | |||||||
| Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5) | |||||||
| Power | 35W | 40W | 45W | ||||
| Open circuit voltage(Voc) | 21.5V | 21.5v | 21.6V | ||||
| Max. power voltage(Vmp) | 17.46V | 17.48V | 17.5V | ||||
| Short circuit current(Isc) | 2.48A | 2.56A | 2.74A | ||||
| Max. power current(Imp) | 2.01A | 2.29A | 2.58A | ||||
| A grade power Tolerance | ± 3% | ||||||
| Max.system voltage | 1000V | ||||||
| Operating temp. | —40℃~80℃ | ||||||
| Temperature coefficients of Pmax | -0.47% /℃ | ||||||
| Temperature coefficients of Voc | -0.38% /℃ | ||||||
| Temperature coefficients of Isc | +0.1% /℃ | ||||||
FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in No.12,Yuci North Road, Wuxing Village, Fengshan Street,Yuyao City,Zhejiang Pr
China. You are warmly welcomed to visit us
And before you take off from your country, please let us know. We will show you the way, or arrange time to
pick you up if possible.
3. Q: Do you provide free sample?
A: Usually we do not offer free sample.
4. Q: Can the price be cheaper?
A: Of course, you will be offered a good discount for big amount.
5. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
6. Q: Do you accept custom design on size?
A: Yes, if the size is reasonable.
|
|
| Brand Name: | OLLIN PV |
| Model Number: | OL-36m-45 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Packaging Details: | 2PC per carton, |
45W monocrystalline PV Solar Panel Solar Cell charge for solar boat light, solar monitor with white frame
Monocrystalline Solar Module
Using only the best quality materials to provide high quality solar modules
1. High efficiency solar cells with high transmission and low iron textured glass
delivering high efficiency modules
2. Bypass diode minimizes the power drop caused by shading
3. Tempered glass,EVA resin,and weatherproof film,plus aluminum frame for
extended outdoor use
4. Modules independently tested to ensure conformance with certification and
regulatory standards
5. Manufacturering facility certified to ISO 9001 quality management system
sandards
| OLLIN-35P-45P | |||||||
| monocrystalline Solar Module | |||||||
| Mechanical Data | |||||||
| Cell type | monocrystalline | ||||||
| No.of cells | 36 in series(4*9) | ||||||
| Dimensions | 625x530x25mm | ||||||
| Weight | 4kg | ||||||
| Electrical Data | |||||||
| Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5) | |||||||
| Power | 35W | 40W | 45W | ||||
| Open circuit voltage(Voc) | 21.5V | 21.5v | 21.6V | ||||
| Max. power voltage(Vmp) | 17.46V | 17.48V | 17.5V | ||||
| Short circuit current(Isc) | 2.48A | 2.56A | 2.74A | ||||
| Max. power current(Imp) | 2.01A | 2.29A | 2.58A | ||||
| A grade power Tolerance | ± 3% | ||||||
| Max.system voltage | 1000V | ||||||
| Operating temp. | —40℃~80℃ | ||||||
| Temperature coefficients of Pmax | -0.47% /℃ | ||||||
| Temperature coefficients of Voc | -0.38% /℃ | ||||||
| Temperature coefficients of Isc | +0.1% /℃ | ||||||
FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in No.12,Yuci North Road, Wuxing Village, Fengshan Street,Yuyao City,Zhejiang Pr
China. You are warmly welcomed to visit us
And before you take off from your country, please let us know. We will show you the way, or arrange time to
pick you up if possible.
3. Q: Do you provide free sample?
A: Usually we do not offer free sample.
4. Q: Can the price be cheaper?
A: Of course, you will be offered a good discount for big amount.
5. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
6. Q: Do you accept custom design on size?
A: Yes, if the size is reasonable.
