| Brand Name: | OLLIN PV |
| Model Number: | OEM |
| MOQ: | one unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

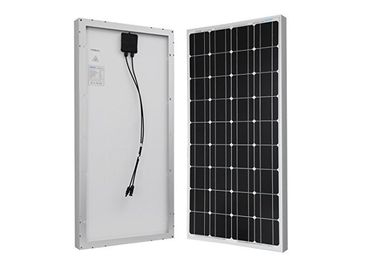

140w Monocrystalline Solar Module charge for street light solar monitor system battery
Features:
High conversion efficiency
Low power tolerance of 0~+3%
Low degradation under light exposure
Can withstand high wind-pressure, snow load and extreme temperature
Passing IEC 61215 2400Pa mechanical load test
Quality and Safety:
10-year warranty on product materials and processing technology
Power output warranty: 10 years: 90%, 25 years: 80%
ISO 9001: 2008(Quality Management System) certified factory
IEC61215, IEC61730, MCS CEC certified products CE conformity
Applications
On-grid residential roof-tops
On-grid commercial/industrial roof-tops
Solar power plants
Off-grid system
Other on-grid applications
ELECTRICAL CHARACTERISTICS
| Module Type | OLPV130W | OLPV140W | OLPV150W | OLPV160W | OLPV165W |
| Maximum power | 130 W | 140 W | 150 W | 160 W | 165 W |
| Max power voltage | 17.50 V | 17.70 V | 17.90 V | 18.10 V | 18.20 V |
| Max power current | 7.43 A | 7.92 A | 8.38 A | 8.84 A | 9.06 A |
| Open circuit voltage | 21.50 V | 21.70 V | 21.90 V | 22.10 V | 22.30 V |
| Short circuit current | 7.96 A | 8.49 A | 9.01 A | 9.53 A | 9.74 A |
| Module Efficiency | 13.13% | 14.14% | 15.15% | 16.16% | 16.67% |
| Power Tolerance | -0~+5W | -0~+5W | -0~+5W | -0~+5W | -0~+5W |
| Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||||
| Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||
| Temperature coefficients of Isc | +0.049% /℃ | ||||
| Temperature coefficients of Voc | -0.340% /℃ | ||||
| Temperature coefficients of Pmax | -0.430% /℃ | ||||
| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable. | ||||
Introduction of Solar System
Solar module:solar battery module(also called photovoltaic battery module)in series or in parallel according
to the system requirements,the solar energy will change into electrical energy in the light of the sun and
then output,it is the core component of solar photovoltaic system.
Controller: solar power controller is an important part of the solar power system, System of charging and
discharging and load work automatically by its intelligent control and protection. Its performance directly
affects the reliability of the system. Especially the battery life, overcharge or over discharge will be cause
damage and even lethal damage for the battery.
Inverter: in solar photovoltaic power supply system, if it has the AC load, it is necessary to use the devices
of the inverter. The direct current generated by solar modules or the battery release of DC into AC for load.
Brackets:the brackets is made of galvanized steel/anodized anodized,with the quality of corrosion
resistance,light-weight and strong intensity. It can be used in extremely bad installation condition.
