| Brand Name: | OLLIN PV |
| Model Number: | OL-72M-90 |
| MOQ: | one unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

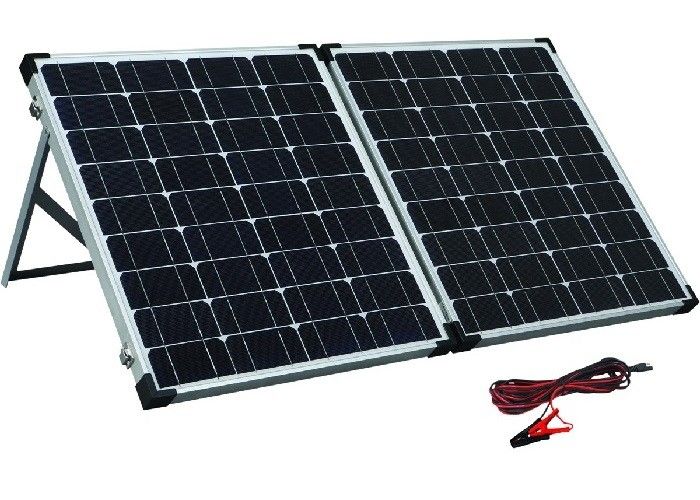

Monocrystalline Solar Module 90Watt folding solar panel black color solar cells with heavy duty padded carry bag
Solar Module
1. Rated Maximum Power 90W
2. Current at Pmax (lmp) 5.18A
3. Volatage at Pmax (Vmp) 17.4V
4. Short- Circuit Current(lsc) 5.76A
5. Open- Circuit Voltage( Voc) 21.4V
6. Max System V 1000V
7. Max Senes Fuse Rating 10A
8. Application Class A
9. Nominal Operating Cell Temp -40 ℃ TO+85℃
10. Widely used for camping ,travel,adventure and other fields of outdoors and charge for DC 12v/24v/48v
battery.Included controller,cable,alligator clip,connectors,protection conners and strong supporting leg single
bag.
11. Providing special design.
12. Module efficiency : 16%
13.Warranty : 12 years/90%,25 years/80%, guaranteed 10years material and workmanship
14. Tolerance : Guatanteed tolerance,different model with diffetent tolerance,and delivers higher outputs
reliably
15. Excellent performance under low light conditions
16. Load test: module certified to wind and snow loads
17.Anti-reflective,hydrophobic layer with light absorption and minimal surface dust
| Type | Folded size | Weight | Specification | ||||
| Max-power | Volatage at Pmax | Current at Pmax | Open- Circuit Voltage |
Short- Circuit Current |
|||
| Module | MM | KG | W | V | A | V |
A |
| OLPV-200W | 1200*540*70 | 20 | 200 | 18 | 10.53 | 22 |
11.37 |
| OLPV-190W | 190 | 18 | 10.15 | 22 |
10.96 |
||
| OLPV-180W | 180 | 18 | 9.62 | 22 |
10.38 |
||
| OLPV-170W | 1000*540*70 | 16 | 170 | 18 | 9.44 | 22 |
10.2 |
| OLPV-160W | 160 | 18 | 8.89 | 22 |
9.6 |
||
| OLPV-150W | 150 | 18 | 8.33 | 22 |
9 |
||
| OLPV-120W | 810*540*70 | 14 | 120 | 18 | 6.67 | 22 |
7.2 |
| OLPV-110W | 110 | 18 | 6.11 | 22 |
6.6 |
||
| OLPV-100W | 610*540*60 | 10 | 100 | 18 | 5.56 | 22 |
6 |
| OLPV-90W | 90 | 18 | 5 | 22 |
5.4 |
||
| OLPV-80W | 80 | 18 | 4.44 | 22 |
4.8 |
||
| OLPV-60W | 420*540*60 | 9 | 60 | 18 | 3.33 | 22 |
3.6 |
Where there is sunlight ,there is power supply!
The foldable solar panel kit with integrated charge controller can charge a battery directly and also a usb
output to charge mobile phones, tablets and digital camera. This kit bring mobile solar power for RV,
caravans, motor homes, trucks, golf car, boats as well as all the outdoor activities..
The foldable solar panel kit with high efficiency solar cell which can generate maximum power in the fix area
and aluminum frame and supporting bracket, easy to install to absorb the sunlight, just plug and play.
MATERIALS
• Advanced EVA encapsulation system with triple-layer back sheet meets the most stringent safety
requirements for high-voltage operation
• The sturdy, anodized aluminum frame allows the modules to be mounted on a variety of standard racking
systems and to withstand harshest conditions
• Ultra reliable bypass diodes prevent damage through overheating due to shaded or defective cells
• Innovative, environmentally friendly packing method using pile-edges ensures modules arrive in perfect
condition
• New frame design incorporating hexagonal shaped drainage holes, with more grounding holes, provide
flexible installation and use
