| Brand Name: | OLLIN PV |
| Model Number: | OL-36M-20 |
| MOQ: | one unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

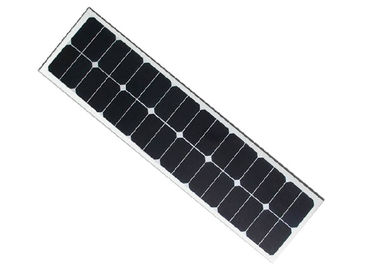

Monocrystalline Solar Module 20Watt solar panel black color solar cells can be used to charge Solar camping light
Solar Module
1. Rated Maximum Power 20W
2. Current at Pmax (lmp) 1.11A
3. Volatage at Pmax (Vmp) 17.4V
4. Short- Circuit Current(lsc) 1.2A
5. Open- Circuit Voltage( Voc) 21.4V
6. Max System V 1000V
7. Max Senes Fuse Rating 10A
8. Application Class A
9. Nominal Operating Cell Temp -40 ℃ TO+85℃
10. Widely used for camping ,travel,adventure and other fields of outdoors and charge for DC
12v/24v/48v battery.Included controller,cable,alligator clip,connectors,protection conners and
strong supporting leg single bag.
11. Providing special design.
| Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||||
| Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||
| Temperature coefficients of Isc | +0.049% /℃ | ||||
| Temperature coefficients of Voc | -0.340% /℃ | ||||
| Temperature coefficients of Pmax | -0.430% /℃ | ||||
| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable. | ||||
Is solar power difficult to use?
Although the production of solar panels incorporates a high-tech manufacturing process, it is
really very easy to use a photovoltaic system. Solar panels have no moving parts to wear out,
they can be used alone or in combination with other energy sources, and they are silent,
reliable and long lasting.
What can you power with Photovoltaics?
A properly designed photovoltaic system can supply electricity for many applications, from
small remote lighting needs to megawatts of power for large utility companies. An advantage
of photovoltaic power is that it can do anything a traditional power generator can do, only
without consuming pollution-causing fuel, or requiring noisy motors.
