| Brand Name: | OLLIN PV |
| Model Number: | OL-36P-10 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

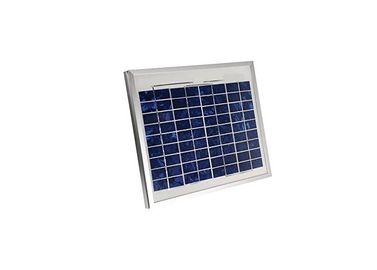

10Watt Aluninium frame Solar Panel Solar Cell charging for solar traffic light Solar camping light
Features:
ENHANCED EXTERNAL LOAD / IMPACT
Snow Load : 5,400 Pa (30T) / 8,400 Pa (40T)
Wind Load : 2,400 Pa (30T) / 5,400 Pa (40T)
Hail Impact : 30.7m/s (speed ball)
POWER ADVANTAGE
25-year, linear power warranty
> 97.5% nominal power during 1st year
Positive tolerance up to +5W
PID RESISTANCE
Enhanced potential induced degradation
ENVIRONMENT RESISTANCE
Suitable for extreme conditions
Resistant to high salt mist and ammonia
AVAILABLE IN TWO THICKNESSES
Standard (30T) and 40T for more durability
Electrical Characteristics
| ITEM NO | 10W/18V |
| MONO or POLY | poly |
| Maximum power (Wp) | 5wp |
| Maximum power voltage (V) | 18 |
| Maximum power current (A) | 0.57 |
| Open circuit voltage (V) | 21.6 |
| Short circuit current (A) | 0.61 |
| Number of cells (Pcs) | 36 |
| Size of module (mm) | 340*240*17 |
| Brand Name of Solar Cells | HT |
| Maximum system voltage (V) | 715 |
| Temperature coefficients of Isc (%) | 0.065+/-0.015%/°C |
| Temperature coefficients of Voc (%) | -(2.23+/-0.1)mv/ °C |
| Temperature coefficients of Pm (%) | -(0.5+-0.05)/ °C |
| Temperature coefficients of Im (%) | +0.1/ °C |
| Temperature coefficients of Vm (%) | -0.38/ °C |
| Temperature Range | -40°C~+85°C |
| Tolerance Wattage (e.g. +/-5%) | +/-5% |
| Surface Maximum Load Capacity | 60m/s(200kg/sq.m) |
| Allowable Hail Load | steel ball fall down from 1m height |
| Weight per piece (kg) | 1.2 |
| Length of Cables (mm) | 3m |
| Cell Efficiency (%) | more than13% |
| Module Efficiency (%) | more than 8% |
| Output tolerance (%) | +/-5% |
| Frame (Material, Corners, etc.) | Aluminum |
| Standard Test Conditions | AM1.5 100mw/cm2 25°C |
| Warranty | 2 years product warranty and 25years 80% of power |
| FF (%) | 75% |
| Packing | 10PCS/ CTN |
| Unit Price |
