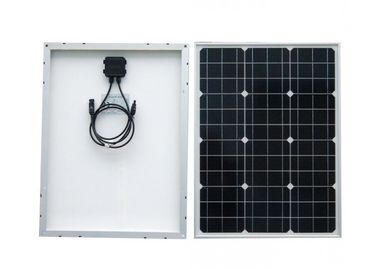

50Watt mono PV Solar Panels Aluninium frame charging for Solar camping light
Solar Panel Feature:
1. Nominal 18V DC for standard output.
2. Cable connectors for easy installation.( custom connector DC line/ MC4 connectors/
Alligator clip/SAE ect)
3. Outstanding low-light performance.
4. Splendid aesthetic appearance and easy installation.
5. High efficiency & high stability.
6. Advanced EVA encapsulation system with TPT back sheet to improve product modules
7. Design to meet unique demand of customer.
8. 25 year module output warranty.
Electrical Characteristics
| Model type | 80W | 70W | 60W | 50W | 40W |
| Peak power(Pmax) | 80 | 70 | 60 | 50 | 40 |
| Weight(kg) | 7.02 | 6.29 | 5.52 | 4.82 | 4.09 |
| Dimensions(mm) | 875x670x25 | 775x670x25 | 675x670x25 | 580x670x25 | 480x670x25 |
| Maximum power voltage (Vmp) | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |
| Maximum power current (Imp ) | 4.58 | 4 | 3.43 | 2.86 | 2.29 |
| Open circuit voltage (Voc) | 21.6 | 21.6 | 21.6 | 21.6 | 21.6 |
| Short circuit current (Isc) | 5.17 | 4.52 | 3.87 | 3.23 | 2.59 |
| Maximum system voltage | DC 1000V | ||||
| Temp.Coeff.of Isc(TK Isc) | 0.045%/℃ | ||||
| Temp.Coeff.of Voc(TK Voc) | –0.34%/ | ||||
| Temp.Coeff.of Pmax(TK Pmax) | –0.47%/℃ | ||||
| Normal Operting Cell Temperature | 45±2℃ | ||||
| Tolerance | 0~3w | ||||
Application Scope
Courtyard lighting.
Small household lighting system.
Street lighting.
Water Pump in backyard, garden or fish pond.
Portable solar power.
Boat, marine, car, RV.
All small power electrical devices & small PV system.
