| Brand Name: | OLLIN PV |
| Model Number: | OL-36P-20 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

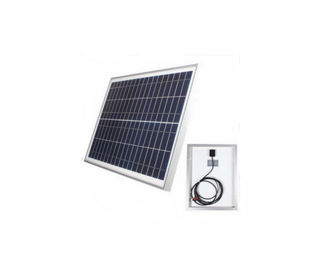

20W 25W PV Solar Panels Aluninium frame solar module charging for solar tracking device
Feature and quality control:
1. Brand name of cells
2. High efficiency solar cells with isotropic etched surface;
Low reverse current,high shunting resistance and dependability;
Proper handling from incoming inspection through production, outgoing inspection and package;
100% checked for reverse current and visual appearance;
small light-induced degradation;Calibration by Fraunhofer ISE;PID.
Excellent mechanical load resistance: certified to withsand highwind loads(2400Pa) and snow loads(5400Pa);
High salt and ammonia resistance certified by CE.
Electrical Characteristics
| ITEM NO | 20W/18V |
| MONO or POLY | poly |
| Maximum power (Wp) | 20wp |
| Maximum power voltage (V) | 18 |
| Maximum power current (A) | 1.11 |
| Open circuit voltage (V) | 21.6 |
| Short circuit current (A) | 1.22 |
| Number of cells (Pcs) | 36 |
| Size of module (mm) | 480*340*23 |
| Brand Name of Solar Cells | HT |
| Maximum system voltage (V) | 715 |
| Temperature coefficients of Isc (%) | 0.065+/-0.015%/°C |
| Temperature coefficients of Voc (%) | -(2.23+/-0.1)mv/ °C |
| Temperature coefficients of Pm (%) | -(0.5+-0.05)/ °C |
| Temperature coefficients of Im (%) | +0.1/ °C |
| Temperature coefficients of Vm (%) | -0.38/ °C |
| Temperature Range | -40°C~+85°C |
| Tolerance Wattage (e.g. +/-5%) | +/-5% |
| Surface Maximum Load Capacity | 60m/s(200kg/sq.m) |
| Allowable Hail Load | steel ball fall down from 1m height |
| Weight per piece (kg) | 1 |
| Length of Cables (mm) | 0m |
| Cell Efficiency (%) | more than13% |
| Module Efficiency (%) | more than 8% |
| Output tolerance (%) | +/-5% |
| Frame (Material, Corners, etc.) | Aluminum |
| Standard Test Conditions | AM1.5 100mw/cm2 25°C |
| Warranty | 2 years product warranty and 25years 80% of power |
| FF (%) | 75% |
| Packing | 10PCS/ CTN |
| Unit Price |
Ground mounted photovoltaic system
Ground mounted photovoltaic system are usually large, utility-scale solar power plants. Their solar modules
are held in place by racks or frames that are attached to ground based mounting supports. Ground based
mounting supports include:
Pole mounts, which are driven directly into the ground or embedded in concrete.
Foundation mounts, such as concrete slabs or poured footings
Ballasted footing mounts, such as concrete or steel bases that use weight to secure the solar module
system in position and do not require ground penetration. This type of mounting system is well suited for
sites where excavation is not possible such as capped landfills and simplifies decommissioning or
relocation of solar module systems.
| Payment Terms | T/T | EXW | 30% T/T in advance, paid the balance before shipment | |||
| FOB | ||||||
| CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | |||||
| CIF | ||||||
| L/C | L/C amount above 50,000 usd, we can accept L/C at sight | |||||
| West Union | Amount lower than 5000usd | |||||
| Paypal | ||||||
| Delivery time | 7~10days after receiving payment for one container | |||||
Q1: Are you a factory or trading company?
A Yes, we are factory, supplying OEM/ODM service.
Q2:Where is your factory located? How can I visit there?
A: Our factory is located in yuyao ,Zhejiang province China, near shanghai, You are warmly welcomed to
visit us!
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: Can the price be cheaper?
A: Of course, you will be offered a good discount for big amount.
Q5: Could you print our company LOGO on the nameplate and package?
A: Yes, we accept OEM orders.
video
|
|
