| Brand Name: | OLLIN PV |
| Model Number: | OEM |
| MOQ: | 1 piece |
| Price: | negotiation |
| Delivery Time: | 20DAYS |

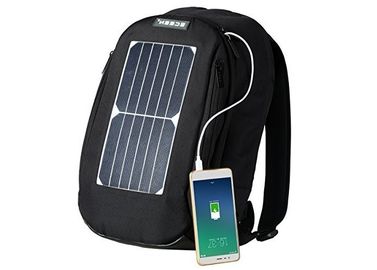

protable fast charging Outdoor Hiking trip charger Camping Charger Solar charger Bag with Removable solar panels
Product Feature
Solar Panel Feature:
Ø High efficiency solar cell >22.5%
Ø Bending angle >20 degrees
Ø Super thin 3mm
Ø Super light 650G
Ø semi flexible, durable, can withstand impacts
Ø producing 2 times more power than conventional oneProduct Specification
Solar backpack specification
product name New design solar charger back pack
Color Green or customized
Logo We can supply the OEM logo service
Material 1680D Polyester and 210D lining
Solar Panel Specification
Item Solar panel charger
USB output 5V 1A
Solar cell solar cell > 22.5%
Encapsulation PET+EVA+CELL+EVA+black PET+Fabric
Maximun power 8W
Voltage at max power 6.5V
Size 318*175mm
Net weight 780g
Electrical Characteristics
| Products Name | Color | Details specification |
| Solar panel bagpack | black |
5W solar backpack
Bag material :Polyester Bag size:52*32*18cm Solar panel : Mono - crystalline sunpower solar panel 5W, 5V |
| ITEM NO | 5W/18V |
| MONO or POLY | poly |
| Maximum power (Wp) | 5wp |
| Maximum power voltage (V) | 18 |
| Maximum power current (A) | 0.27 |
| Open circuit voltage (V) | 21.6 |
| Short circuit current (A) | 0.29 |
| Number of cells (Pcs) | 36 |
| Size of module (mm) | 269x179x18 |
| Brand Name of Solar Cells | HT |
| Maximum system voltage (V) | 715 |
| Temperature coefficients of Isc (%) | 0.065+/-0.015%/°C |
| Temperature coefficients of Voc (%) | -(2.23+/-0.1)mv/ °C |
| Temperature coefficients of Pm (%) | -(0.5+-0.05)/ °C |
| Temperature coefficients of Im (%) | +0.1/ °C |
| Temperature coefficients of Vm (%) | -0.38/ °C |
| Temperature Range | -40°C~+85°C |
| Tolerance Wattage (e.g. +/-5%) | +/-5% |
| Surface Maximum Load Capacity | 60m/s(200kg/sq.m) |
| Allowable Hail Load | steel ball fall down from 1m height |
| Weight per piece (kg) | 0.6 |
| Length of Cables (mm) | 3m |
| Cell Efficiency (%) | more than13% |
| Module Efficiency (%) | more than 8% |
| Output tolerance (%) | +/-5% |
| Frame (Material, Corners, etc.) | Aluminum |
| Standard Test Conditions | AM1.5 100mw/cm2 25°C |
| Warranty | 2 years product warranty and 25years 80% of power |
| FF (%) | 75% |
| Packing | 10PCS/ CTN |
| Unit Price |
Our Services
1. Your inquiry will be replied within 24 hours.
2. Our professional R&D team can meet your OEM/ODM requirement.
3. Strict Quality Control to insure providing you high quality products.
4. Our After-sale dept could help you deal with any problems when you received our products.
Shipping
1. Normally, we will send out goods within 10 ~ 25 working days after payment ( depends on the quantity ).
DHL, FedEx, EMS, UPA etc. are available.
2. We can declare the custom invoice with lower value for helping you to save money.
( if you want declare the goods as other item name, or specified value for custom, please inform us before placing the order)
3. Buyer is responsible for any customs duties if it is required.
4. Please provide correct address and contact information when placing order.
|
|
