| Brand Name: | OLLIN PV |
| Model Number: | OL-36P-25 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

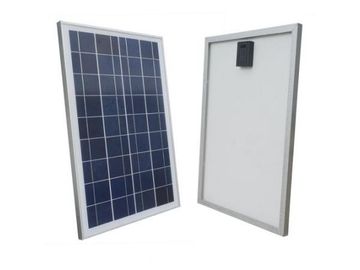

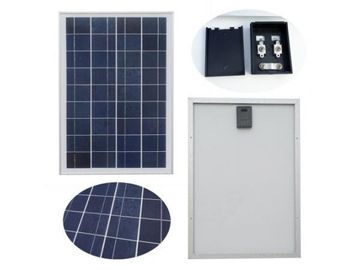

25w 30w poly 12V Solar Panel applied to DC LED lights battery camping picnic and other uses
Applications:
1) Providing realiable and economical solar electric systems for remote power solutions;
2) Designed for use on residential and small commercial buildings;
3) Ideal for solar – electric water pumping systems;
4) Logical solution for the remote energy needs of the oil & gas industry;
5) Solar lighting system;
Specifications:
| Specifcation | |
| Reted power | 25W |
| Voc | 22.41V |
| Vop | 17.9V |
| Short circuit current (Isc) | 1.54A |
| Working current (Iop) | 1.4A |
| Output Tolerance | ±3% |
| Temperate coefficient of Isc | (010+/- 0.01 )%/ ℃ |
| Temperate coefficient of Voc | - (0.38 +/-0.01 )%/ ℃ |
| Temperate coefficient of power Voc | -0.47%/℃ |
| Temperature range | -40℃to +80℃ |
| Frame | Heavy duty aluminum |
| Kind of connection | waterproof junction box, can be customized |
| Guarantee of power | 90% within 10 years 80% within 25 years |
| Kind of glass and its thickness | Low Iron, high transparency tempered glass of 3.2mm |
| SLA Battery Voltage | 12V |
| Dimensions (L x W x H)mm | 520*365*18(20.47*14.37*0.71in) |
Features:
1) Nominal 12v/24v DC for standard output;
2) Outstanding low-light performance;
3) Rugged design to withstands high wind preasure and snow load, easy installaion;
4) Aesthetic appearance;
5) Design to meet unique design of customer;
6) 25 year module output warranty;
7) High Efficiency;
Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
>Anti-PID
Glass
>Anti-reflective glass
>Translucency of normal luminance is increased by 2%
>Module efficiency is increased by 2%
>Self-cleaning function
>Service life is as long as 25 years(30 years optional)
Frame
> Conventional frame
>Silver or black frames are optional
>Boost bearing capability and prolong service life
>Serrated-clip design tensile strength
>Seal-lip design-glue injection
Junction box
>Conventional standalone edition and engineering custom edition
>Quality diode ensures module running safety
>IP67 protection level
>Heat dissipation
>Long service life
