| Brand Name: | OLLIN PV |
| Model Number: | OL-36M-20 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

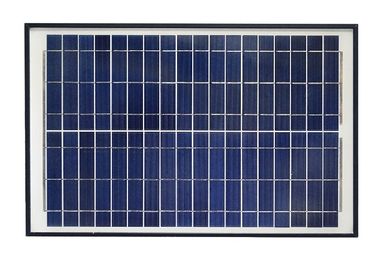

12V Solar Panel street light system 10watt 20watt black frame poly Solar Panel with Alligator clip
FEATURES
1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. High transmittance low iron tempered glass with enhanced stiffness and impact resistance
3. Unique frame design with high mechanical strength for easy Installation.
4 Advanced encapsulation material with multiplayer sheet lamination to provide efficient protection from the
severest environmental conditions, PET sheet imported from Toyo Japan with advanced encapsulating
material
5. Outstanding electrical performance under high temperature and low irradiance conditons
6. Excellent performance in harsh weather , Outstanding electrical performance under high temperature and
low irradiance
7. Strictly quality control ensure the stability and reliability, totally 30 QC procedures
APPLICATIONS
`Solar power stations
`Rural electrification, Small home power systems
`Power supply for traffic, security, gas industry
`12V and 24V battery charging system
`Other industrial and commercial applications
Specifications:
| OLLIN-10P-20P | |||||||
| Polycrystalline Solar Module | |||||||
| Mechanical Data | |||||||
| Cell type | Polycrystalline | ||||||
| No.of cells | 36 in series(4*9) | ||||||
| Dimensions | 480*340*25mm | ||||||
| Weight | 2.2kg | ||||||
| Electrical Data | |||||||
| Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5) | |||||||
| Power | 10WP | 15WP | 20WP | ||||
| Open circuit voltage(Voc) | 21.5V | 21.5v | 21.6V | ||||
| Max. power voltage(Vmp) | 17.46V | 17.48V | 17.5V | ||||
| Short circuit current(Isc) | 0.6A | 0.9A | 1.2A | ||||
| Max. power current(Imp) | 0.56A | 0.83A | 1.1A | ||||
| A grade power Tolerance | ± 3% | ||||||
| Max.system voltage | 1000V | ||||||
| Operating temp. | —40℃~80℃ | ||||||
| Temperature coefficients of Pmax | -0.47% /℃ | ||||||
| Temperature coefficients of Voc | -0.38% /℃ | ||||||
| Temperature coefficients of Isc | +0.1% /℃ | ||||||
| Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||||
| Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||
| Temperature coefficients of Isc | +0.049% /℃ | ||||
| Temperature coefficients of Voc | -0.340% /℃ | ||||
| Temperature coefficients of Pmax | -0.430% /℃ | ||||
| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable. | ||||
FAQ
Frequently Asked Questions for photovoltaic solar panel
1. What is the brand for this panel?
---OLLIN PV solar, we are the manufacturer of this panel, OEM service is available, wholesales is welme
2. What kind of Solar Cells does it have
---poly crystalline 156*156mm or mono 125*125 and 156*156
3. Is the front panel Glass or Plastic
---Tempered glass 3.2mm thickness or adjust to what you need, Light transmittance up to 95%.
4. What is the Efficiency level
--- Between 16-18.9% for solar cells.
6. What is the Nominal Voltage
-- 18v 20v 24v 36v 30v 48v , and so on, we can adjust to what you need
7. What is the Warranty Period, How many years?
Power efficiency warranty:
90% in 10 years; 85% in 25 years.
|
|
