| Brand Name: | OLLIN PV |
| Model Number: | OL-36P-160 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

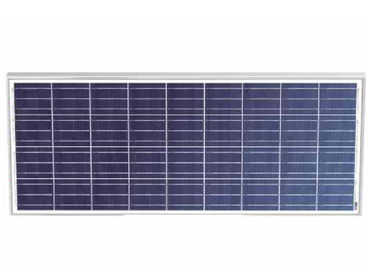

160Watt poly BLACK 12V Solar Panel Caravan Home Off Gird Battery Charging Power with MC4 connercter
Solar Panel Specifications
Maximum power: 160W
Maximum voltage: 18.3V
Maximum current: 8.4A
Open circuit voltage: 22.8V
Short circuit current: 8.97A
Dimensions: 1482 x 676 x 35mm
Product features:
1. High-transmittance low-iron tempered glass, anti-aging EVA, excellent weathering resistance TPT
2. Anodized quality aluminum frame, beautiful appearance
3. Wind resistance, pressure resistance, high conversion efficiency
Product field:
1. Gird-connected power generation system
2. Off-grid power generation system
3. Building-integrated power generation facilities
Specifications:
| Module Type | OLPV130W | OLPV140W | OLPV150W | OLPV160W | OLPV165W |
| Maximum power | 130 W | 140 W | 150 W | 160 W | 165 W |
| Max power voltage | 17.50 V | 17.70 V | 17.90 V | 18.10 V | 18.20 V |
| Max power current | 7.43 A | 7.92 A | 8.38 A | 8.84 A | 9.06 A |
| Open circuit voltage | 21.50 V | 21.70 V | 21.90 V | 22.10 V | 22.30 V |
| Short circuit current | 7.96 A | 8.49 A | 9.01 A | 9.53 A | 9.74 A |
| Module Efficiency | 13.13% | 14.14% | 15.15% | 16.16% | 16.67% |
| Power Tolerance | -0~+5W | -0~+5W | -0~+5W | -0~+5W | -0~+5W |
| Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||||
| Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||
| Temperature coefficients of Isc | +0.049% /℃ | ||||
| Temperature coefficients of Voc | -0.340% /℃ | ||||
| Temperature coefficients of Pmax | -0.430% /℃ | ||||
| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable. | ||||
How much power i will get?
If the 10 watt solar panel received 5 hours per day of full sun, then you would have:
0.64 amps (10W panel) X 5 hrs sun = 3.2 amp - per/day
3.2 X 12V = 38.40 watt - per/day.
Product Highlights:
Outstanding electrical performance under high temperature and low irrandiance conditions
Capable of withstanding 1 inch diameter hail traveling at terminal velocity
5 year material and workmanship warranty. 25 year power warranty
|
|
