| Brand Name: | OLLIN PV |
| Model Number: | OL-72P-60 |
| MOQ: | one unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |
1) Solar Cell:High efficiency solar cells ensure high performance of solar module and create maximum
power output.
2) Low Iron Tempered Glass::Anti-reflecting coating and high transmission rate glass increase the power
output and mechanical strength of solar module.
3) Aluminum Frame: Without screw, corner connection. 10 holes on the frame can be installed easily.
4) Superior Junction Box:Multi function junction box with water proof capabilities.
5) Long Lifespan: >= 25 years.
6) Tolerance :+/-3%.
7) Good performance of preventing from atrocious weather such as wind and hails. Resisting moisture and
etching effectively, not effect by
8) The certificate issued by international authority: CE, TUV, IEC.
| Model No. | Power | Voc | Isc | Vmp | Imp | Weight(Kg) | Accessories |
|---|---|---|---|---|---|---|---|
| OL-PV-60W | 60W | 22.4 | 3.66 | 18 | 3.34 | 8 | 1. Battery cable |
| OL-PV-80W | 80W | 22.4 | 4.85 | 18 | 4.45 | 9 | 2.Anderson Connector |
| OL-PV-120W | 120W | 22.4 | 7.35 | 18 | 6.68 | 16 | 3. MPPT 10A/15A CONTROLLER |
| OL-PV-180W | 180W | 22.4 | 11.02 | 18 | 10.02 | 18 | |
| OL-PV-240W | 240W | 22.4 | 14.67 | 18 | 13.37 | 27 |
|
Model
|
60
|
80
|
100
|
120
|
|
Power(w)
|
60w
|
80w
|
100w
|
120w
|
|
Output Voltage(V)
|
18
|
18
|
18
|
18
|
|
Output Cureet(A)
|
3.35
|
4.45
|
5.56
|
6.68
|
|
Folding Size(mm)
|
460*550*85
|
560*550*85
|
650*550*85
|
760*550*85
|
|
Expand Size(mm)
|
460*1100*45
|
560*1100*45
|
650*1100*45
|
650*1100*45
|
|
Packing Size(mm)
|
470*580*90
|
570*580*90
|
660*580*90
|
770*580*90
|
|
Weight/
|
9kg
|
11kg
|
12.5kg
|
13.5kg
|
|
Color
|
Black, OEM
|
|||

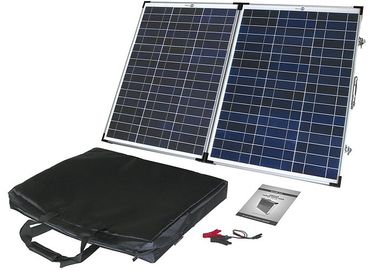

Advantages of Folding Solar Panels
1, Easy to carry: form-padded bag with shoulder strap.
2, Mono crystalline cells: efficient absorber of sunlight.
3, Compatible: includes two of the most common connections.
4, Easy to use: no construction needed, comes ready to use.
5, Quality assured: lifetime output guaranteed.
6, Product support: ongoing expert level advice.
7, Price friendly:at a pocket-friendly price.
8, Clean and compact: eco-friendly, quite energy output
9, Flexible: mountable
10, German standard: guaranteed 0-10% more power
|
|
