| Brand Name: | OLLIN PV |
| Model Number: | OL-72P-180 |
| MOQ: | one unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

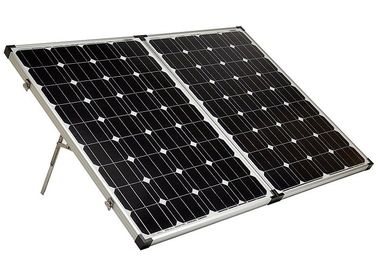

foldable solar panel 180W Mono folding solar panel with heavy duty padded carry bag
Product Information:
1. DC12V,DC 24V batery automatic adaptation
2. Battery charging temperature compensation function
3. Multiple battery protection function: Reverse connect, overcharge,overdischarge, open circuit,over-
voltage,short circuit, over-current protection
4. Gen 4m electronic fuse double protection
5. Series PWM intelligent three stage charging algorithm
6. Thesolarenergy plate reverse connet, reverse charging protection
7. Three LED indicate the working
8. Double button set operation parameters
9. Waterproof IP67,irrigation glue
Product parameter
| Type | Folded size | Weight | Specification | ||||
| Max-power | Volatage at Pmax | Current at Pmax | Open- Circuit Voltage |
Short- Circuit Current |
|||
| Module | MM | KG | W | V | A | V |
A |
| OLPV-200W | 1200*540*70 | 20 | 200 | 18 | 10.53 | 22 |
11.37 |
| OLPV-190W | 190 | 18 | 10.15 | 22 |
10.96 |
||
| OLPV-180W | 180 | 18 | 9.62 | 22 |
10.38 |
||
| OLPV-170W | 1000*540*70 | 16 | 170 | 18 | 9.44 | 22 |
10.2 |
| OLPV-160W | 160 | 18 | 8.89 | 22 |
9.6 |
||
| OLPV-150W | 150 | 18 | 8.33 | 22 |
9 |
||
| OLPV-120W | 810*540*70 | 14 | 120 | 18 | 6.67 | 22 |
7.2 |
| OLPV-110W | 110 | 18 | 6.11 | 22 |
6.6 |
||
| OLPV-100W | 610*540*60 | 10 | 100 | 18 | 5.56 | 22 |
6 |
| OLPV-90W | 90 | 18 | 5 | 22 |
5.4 |
||
| OLPV-80W | 80 | 18 | 4.44 | 22 |
4.8 |
||
| OLPV-60W | 420*540*60 | 9 | 60 | 18 | 3.33 | 22 |
3.6 |
Mono and poly solar panels
1. High reliability with guaranteed ± 3% output power tolerance.
2. The modules can withstand high wind-pressure, snow loads and extreme temperatures
3. Bypass diodes to minimize power loss with shading
4. High and stable conversion efficency to ensure the highest quality
5. High efficiency,waterproof ,stand heavy rain and snow
FAQ
Q1: Are you a factory or trading company?
Yes, we are factory, supplying OEM/ODM service.
Q2: Can you accept OEM service?
Yes, we can. Qty is not the only standard , more qty, less cost.
Q3: How about your after sales-service?
1.Guarantee time: one year, but solar panel 10 years
2.Spare parts:1% spare parts will be shipped with your order.
Q4: How about your payment terms?
We accept T/T, LC, PayPal
Q5: What certification do you have?
1.CE,
2.According to your need , do the certification or report , if you have a big order.
Q6: How many day about delivery time?
1.Sample delivered in 7-10 days.
2.Order delivered in 15-20 days.
Q7: Which port shipping goods?
Ningbo port/ shanghai port/yiwu port
|
|
