| Brand Name: | OLLIN PV |
| Model Number: | OL-72P-180 |
| MOQ: | one unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

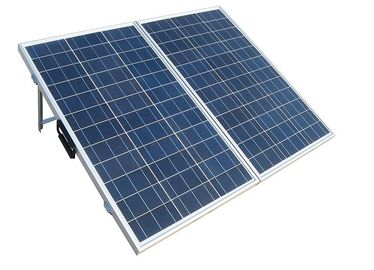

180w Poly portable folding solar panel charger for outdoor with heavy duty padded carry bag
Product Information:
Identification
mono-crystalline folding solar panels with sturdy aluminum frame
heavy duty aluminumn handle*2
heavy duty steel safety fasteners*2
adjustable and strong support legs*2 with anti-slip rubber feet
MPPT WATER-PROOF CONTROLLER 12V/24V with LED indications
5-meter lead with MC4 male and female connectors and alligator clamps
connecting cable with connectors to 5-meter lead
NOCT: 45+/-2°C
Voltage temperature coefficient: -0.33%/°C
Current temperature coefficient: 0.05%/°C
Power temperature coefficient: -0.23%/°C
Parameters Table
| Model | 180W-18V |
| Module size (mm): | 670*910*35 |
| Cell Type | 156*78//3*12 |
| Weight(kg) | 22 |
| Power tolerance: | +/-3% |
| Nominal peak power(WP): | 2*90w |
| Nominal voltage(V): | 18 |
| Nominal current (A): | 10 |
| NOCT: | 45+/-2°C |
| Voltage temperature coefficient: | -0.33%/°C |
| Current temperature coefficient: | +0.05%/°C |
| Power temperature coefficient: | -0.23%/°C |
| Open circuit voltage (Voc): | 21.6 |
| Short cirsuit current(Isc): | 10.8 |
| Conversion efficiency: | 17.3% |
| Operating temperature: | -40 to+85°C |
| Max system voltage: | 1000V DC |
| Type | Folded size | Weight | Specification | ||||
| Max-power | Volatage at Pmax | Current at Pmax | Open- Circuit Voltage |
Short- Circuit Current |
|||
| Module | MM | KG | W | V | A | V |
A |
| OLPV-200W | 1200*540*70 | 20 | 200 | 18 | 10.53 | 22 |
11.37 |
| OLPV-190W | 190 | 18 | 10.15 | 22 |
10.96 |
||
| OLPV-180W | 180 | 18 | 9.62 | 22 |
10.38 |
||
| OLPV-170W | 1000*540*70 | 16 | 170 | 18 | 9.44 | 22 |
10.2 |
| OLPV-160W | 160 | 18 | 8.89 | 22 |
9.6 |
||
| OLPV-150W | 150 | 18 | 8.33 | 22 |
9 |
||
| OLPV-120W | 810*540*70 | 14 | 120 | 18 | 6.67 | 22 |
7.2 |
| OLPV-110W | 110 | 18 | 6.11 | 22 |
6.6 |
||
| OLPV-100W | 610*540*60 | 10 | 100 | 18 | 5.56 | 22 |
6 |
| OLPV-90W | 90 | 18 | 5 | 22 |
5.4 |
||
| OLPV-80W | 80 | 18 | 4.44 | 22 |
4.8 |
||
| OLPV-60W | 420*540*60 | 9 | 60 | 18 | 3.33 | 22 |
3.6 |
Where there is sunlight ,there is power supply!
The foldable solar panel kit with integrated charge controller can charge a battery directly and also a usb
output to charge mobile phones, tablets and digital camera. This kit bring mobile solar power for RV,
caravans, motor homes, trucks, golf car, boats as well as all the outdoor activities..
The foldable solar panel kit with high efficiency solar cell which can generate maximum power in the fix area
and aluminum frame and supporting bracket, easy to install to absorb the sunlight, just plug and play.
FAQ
• Are you manufacturer or trading company?
--- we are a manufacturer & system integrator since Jan 2008.
• What kind of certification do you have?
--- Power from 3W to 315W with CE, ISO
• What is the warranty of solar panels?
--- 3-year warranty on material and workmanship,90% power output in 10 years,80% in 25 years
• Can you quote me the best price?
--- We need more information about your demands, such as the power/material/Qty/etc, then We can
suggest the suitable type and quote the best price for you.
• How do I get solar panel from ollin and Where can I get further information?
--- Please visit our website and send us email or call us.
|
|
