| Brand Name: | OLLIN PV |
| Model Number: | OL-36P-20 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

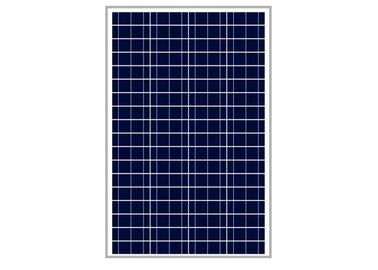

100W12V Solar Panel with 12v battery flexible thin film solar panel chargeing Solar Traffic Signals Lights
Features
Solar panel constituent part :
1. Stalinite (Protect generate conductor from damage ,such as solar cell )
2. EVA (Fix aluminium alloy and generate conductor )
3. Solar cell (Generation function )
4. Backboard(PET) ,Sealing ,insulation and waterproof )
5. Aluminium alloy (Seal and support function)
6. Juntion box ( Protect generation system and transfer current function )
7. Silica gel ( Sealing function )
Specifications:
| OLLIN-100P-120P | |||||||
| Polycrystalline Solar Module | |||||||
| Mechanical Data | |||||||
| Cell type | Poly156mm*114mm | ||||||
| No.of cells | 36 in series(4*9) | ||||||
| Dimensions | 1100*670*30mm | ||||||
| Weight | 7kg | ||||||
| Electrical Data | |||||||
| Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5) | |||||||
| Power | 100WP | 110WP | 120WP | ||||
| Open circuit voltage(Voc) | 21.5V | 21.5v | 21.6V | ||||
| Max. power voltage(Vmp) | 17.46V | 17.48V | 17.5V | ||||
| Short circuit current(Isc) | 5.98A | 6.6A | 7.2A | ||||
| Max. power current(Imp) | 5.56A | 6.1A | 6.67A | ||||
| A grade power Tolerance | ± 3% | ||||||
| Max.system voltage | 1000V | ||||||
| Operating temp. | —40℃~80℃ | ||||||
| Temperature coefficients of Pmax | -0.47% /℃ | ||||||
| Temperature coefficients of Voc | -0.38% /℃ | ||||||
| Temperature coefficients of Isc | +0.1% /℃ | ||||||
| Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||||
| Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||
| Temperature coefficients of Isc | +0.049% /℃ | ||||
| Temperature coefficients of Voc | -0.340% /℃ | ||||
| Temperature coefficients of Pmax | -0.430% /℃ | ||||
| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable. | ||||
SOLAR ELECTRIC POWER GENERATION
Solar Electric Power can be generated varying from 100 Watts small solar home systems to 100 MW Solar
Power Plants or sometimes more than that. The solar power systems are of two types; one is off-grid and
other is on-grid systems. In off-grid systems, the system has no link with Utility grid and components used in
Systems are Solar Panels, Charge Controllers, Inverters, Deep Cycle Batteries, mounting and electric
accessories. Solar Panels convert solar radiations into electric current and this current passes through
charge controllers which charges the battery by controlling current for the battery. Charge controllers
maintain control on charging the battery for its long life. So the DC power is stored in Batteries and this
stored energy is converted into AC Power to operate the AC appliances. The DC appliances can be
operated directly with the battery. So DC and AC load can be operated through a solar power system.
WHY CHOOSE US?
1. Excellent efficiency, Easy Installation & Maintenance
2. Outstanding performance in Low-Light
3. High transparent, Low-Iron, Tempered Glass
4. Ability to withstand High Wind-Pressure and Snow-Load
5. Advanced module sealing technology to eliminate leakage and frame deformation
6. Ability to meet customized customer's specific requirements
|
|
