| Brand Name: | OLLIN PV |
| Model Number: | OL-36M-30 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

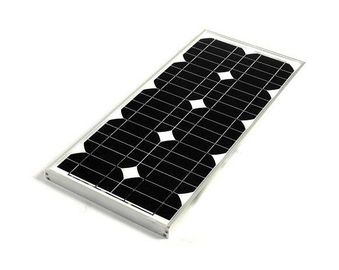

20w 30w white frame mono Solar module 12V Solar Panel charge for street light blinker
Features:
ENHANCED EXTERNAL LOAD / IMPACT
Snow Load : 5,400 Pa (30T) / 8,400 Pa (40T)
Wind Load : 2,400 Pa (30T) / 5,400 Pa (40T)
Hail Impact : 30.7m/s (speed ball)
POWER ADVANTAGE
25-year, linear power warranty
> 97.5% nominal power during 1st year
Positive tolerance up to +5W
PID RESISTANCE
Enhanced potential induced degradation
FIRE SAFETY
UL1703 Fire Classification : Type 1, Type 2
ENVIRONMENT RESISTANCE
Suitable for extreme conditions
Resistant to high salt mist and ammonia
AVAILABLE IN TWO THICKNESSES
Standard (30T) and 40T for more durability
Specifications:
| OLLIN-30M-40M | |||||||
| Monocrystalline Solar Module | |||||||
| Mechanical Data | |||||||
| Cell type | Monocrystalline | ||||||
| No.of cells | 36 in series(4*9) | ||||||
| Dimensions | 670*430*25mm | ||||||
| Weight | 2.2kg | ||||||
| Electrical Data | |||||||
| Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5) | |||||||
| Power | 30WM | 35WM |
40WM |
||||
| Open circuit voltage(Voc) | 21.5V | 21.5v |
21.6V |
||||
| Max. power voltage(Vmp) | 17.46V | 17.48V |
17.5V |
||||
| Short circuit current(Isc) | 1.79A | 2.09A |
2.4A |
||||
| Max. power current(Imp) | 1.66A | 1.94A |
2.2A |
||||
| A grade power Tolerance | ± 3% | ||||||
| Max.system voltage | 1000V | ||||||
| Operating temp. | —40℃~80℃ | ||||||
| Temperature coefficients of Pmax | -0.47% /℃ | ||||||
| Temperature coefficients of Voc | -0.38% /℃ | ||||||
| Temperature coefficients of Isc | +0.1% /℃ | ||||||
Applications:
1) Providing realiable and economical solar electric systems for remote power solutions;
2) Designed for use on residential and small commercial buildings;
3) Ideal for solar – electric water pumping systems;
4) Logical solution for the remote energy needs of the oil & gas industry;
5) Solar lighting system;
How much power i will get?
If the 10 watt solar panel received 5 hours per day of full sun, then you would have:
0.64 amps (10W panel) X 5 hrs sun = 3.2 amp - per/day
3.2 X 12V = 38.40 watt - per/day.
Quality Focused
“Making Reliable Products” is the core business fundamental of our company. We implement an IEC
complied quality system in the production for the unique purpose: We ONLY DELIVERS RELIABLE
SOLAR PRODUCTS.
Customer-centric Services
We rounds out its service portfolio based on every customer’s demands, because we think the customer’s
satisfaction is the motive force of growth for the company. Our skilled R&D engineers and customer support
teams are always prepared to provide all-round services for our clients.
Professional Team
OLLIN PV is created and managed by an experienced team recognized for their passion, professionalism
and integrity. All of our executives have outstanding background in solar product manufacturing, corporate
governance and international marketing. We work together every day for our aspirations: bringing better
product experience to the clients, creating a world-wide respected brand and turning the business success
of the company into the professional satisfaction of our employees.
|
|
