| Brand Name: | OLLIN PV |
| Model Number: | OEM |
| MOQ: | 1 piece/unit |
| Price: | negotiation |
| Delivery Time: | 20DAYS |

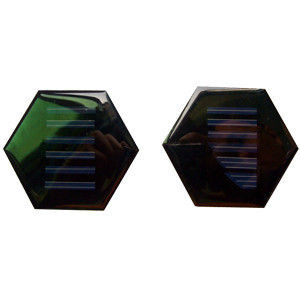

1): Epoxy resin solar panel is made of monocrystalline or polycrystalline silicon. The encapsulation material
are made of Epoxy Resin. Characterized by anti-humidity, insulation, excellent transparence and anti-aging,
as well as smoothness, no bubble and neat apperance. Hard appearance; long-time life, high-performance
to week light; widely used in lamp series, no power source sector.
2): Epoxy resin solar panels are easily to install; friendly environmental. High efficiency solar cells, Non-
stick protective film.
3):Epoxy resin solar panels can be widely used in solar lawn lamps, solar toys, solar chargers and solar
signal lights.
4)All these solar panels, are covered with 10year warranty
5)Other service: Apart from these, we will also provide OEM/ODM service based on your requirements.
6)We have 3 professional engineers, with rich experience in electronic and structural design of solar
products. Our cheif engineer is already 70years old, but still energetic in R&D of all new products.
7)Also we have a good production & QC team, that can manage your lead time, quality well.
| Item No. | Max Power | Rated Voltage | Output Voltage | Dimension | Net Weight |
| 0.5V100MA | 0.05W | 0.5VDC | 53x18x3mm | 0.003kg | |
| 1V85MA | 0.085W | 1VDC | 30x25x3mm | 0.0022kg | |
| 1.5V400MA | 0.65W | 1.5VDC | Charge for 1.2V Battery | 80x60x3mm | 0.018kg |
| 2V130MA | 0.26W | 2VDC | 54x54x3mm | 0.009kg | |
| 2V50MA | 0.1W | 50x34x3mm | 0.008kg | ||
| 3V120MA | 0.36W | 3VDC | 60x55x3mm | 0.011kg |
| 5V30MA | 0.15W | 5-5.5VDC | Charge for 3.6V-3.7V Battery | 53x30x3mm | 0.005kg |
| 5V60MA | 0.3W | 68x36x3mm | 0.01kg | ||
| 5V150MA | 0.75W | 99x69x3mm | 0.02kg | ||
| 5.5V50MA | 80x35x3mm | 0.01kg | |||
| 5.5V60MA | 0.3W | 100x28x3mm | 0.01kg | ||
| 5.5V100MA | 0.55W | 84.5x55.5x3mm | 0.018kg | ||
| 5.5V120MA | 0.66W | 80x60x3mm | 0.02kg | ||
| 6.5V90MA | 0.6W | 6-6.5VDC | 120x70x3mm | 0.03kg | |
| 6V100MA | 0.6W | 120x38x3mm | 0.016kg | ||
| 6V330MA | 2W | 136x110x3mm | 0.06kg | ||
| 6V500MA | 3W | 145x145x3mm | 0.07kg | ||
| 6V580MA | 3.5W | 135x165x3mm | 0.077kg | ||
| 6V750MA | 4.5W | 145x145x3mm | 0.07kg | ||
| 8V150MA | 1.2W | 8VDC | Charge for 6V Battery | 145x95x3mm | 0.05kg |
| 12V250MA | 3W | 12VDC | Charge for 8V Battery | 145x145x3mm | 0.07kg |
| 18V190MA | 3.5W | 18VDC | Charge for 12V Battery | 165x135x3mm | 0.082kg |
| 18V200MA | 4.2W | 200x130x3mm | 0.109kg |
Packaging & Delivery
Packaging Detail:Bubble bag outer Carton
Delivery Detail:10days
Material:Polycrystalline Silicon
Size:110x80mm
Max. Power:1W
Working Voltage:5V
Working Current:200mA
Technology:Epoxy Resin Encapsulation
Product structure:Epoxy Resin + Solar Cells + PCB Board
PCB Material:Insulative, environmental and anti-distorted chipboard and fiberboard
Test Condition:outdoor: AM1.5/1000W/m2/Temperture 25°C Lifetime:around 4-5 years
Application scope:Advertising, mobile charger, solar lights, toys, bags, flashlight etc
|
|
