| Brand Name: | OLLIN PV |
| Model Number: | OEM |
| MOQ: | 1 piece/unit |
| Price: | negotiation |
| Delivery Time: | 20DAYS |

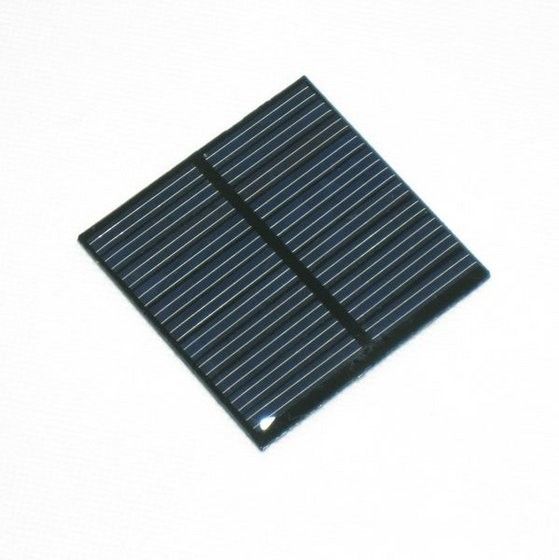

Mini Epoxy Resin Solar Panel 2V 0.6W With Wires Polycrystalline silicon board DIY Battery Solar
Application:
Solar garden lighting
Small home lighting system
Solar street lighting
Solar outdoor advertising
For a variety of low-power appliances, such as emergency lights, advertising lights, traffic lights, home
lights, fans, solar water pumps, solar lights and small solar systems and so on.
Epoxy solar panel structure
It is a traditional type small solar panel called epoxy resin encapsulated solar panel, which is sticked
together by epoxy resin glue at a temperature 50~60 degree, you will see the epoxy resin coated panel
have three layers,
1. Epoxy Resin AB Glue
2. Solar Cells
3. PCB Board
| Item No. | Max Power | Rated Voltage | Output Voltage | Dimension | Net Weight |
| 0.5V100MA | 0.05W | 0.5VDC | 53x18x3mm | 0.003kg | |
| 1V85MA | 0.085W | 1VDC | 30x25x3mm | 0.0022kg | |
| 1.5V400MA | 0.65W | 1.5VDC | Charge for 1.2V Battery | 80x60x3mm | 0.018kg |
| 2V130MA | 0.26W | 2VDC | 54x54x3mm | 0.009kg | |
| 2V50MA | 0.1W | 50x34x3mm | 0.008kg | ||
| 3V120MA | 0.36W | 3VDC | 60x55x3mm | 0.011kg |
FAQ
Q1: Are you a factory or trading company?
A: We are a factory.
Q2: Where is your factory located? How can I visit there?
A: Our factory located in Shenzhen & Changzhou, China. Welcome to visit us.
Q3. Can I have a sample order for solar panel?
A: Yes, we welcome sample order to test and check quality.
Q4: Could you print our company LOGO on the nameplate and package?
A: Yes, we offer OEM service.
Q5. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 2MW.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty for our products
|
|
