| Brand Name: | OLLIN PV |
| Model Number: | oem |
| MOQ: | one unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

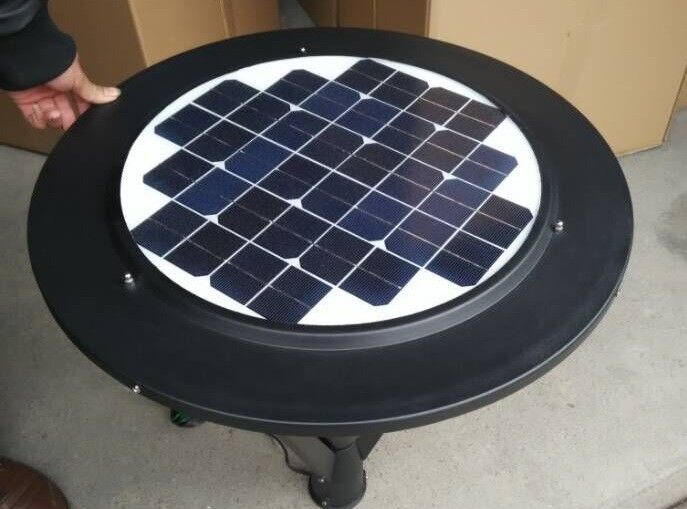

PV Solar Cells round Shape solar PV modules Round Solar Panels charge for Small home lighting system solar display
High module conversion efficiency
(up to 16%), through superior cell technology and
leading manufacturing capability
Positive tolerance
Guaranteed tolerance from ±3% ensures
power output reliability
Excellent weak light performance
Excellent performance under low light environments
(mornings, evenings, and cloudy days)
Withstand high wind and snow loads
Entire module certified to withstand high wind loads
(2400 Pascal) and snow loads (5400 Pascal) *
| Ollin PV25-M | 25W Poly solar panel |
| Solar cell | Polycrystalline solar cell 125-2bus |
| No.of cells and connections | 36pcs |
| Test condition | AM1.5, 1000W/m², 25°C |
| Tolerance | ±5% |
| Maximum power(Pm) | 25(W) |
| Voltage at max power(Vmp) | 18.0(V) |
| Current at max power(Imp) | 1.38(A) |
| Short circuit current(Isc) | 1.58(A) |
| Open circuit voltage(Voc) | 21.6(V) |
| Dimension of module | Φ495*5mm |
|
Cable |
4.0mm2 |
|
Tempered Glass |
3.2mm(0.13inches)tempered glass |
|
Cell Encapsulation |
EVA(Ethylene-vinyl-Acetate) |
|
Back Sheet |
composite film |
|
Frame |
Anodized aluminum alloy |
|
Dimension |
1957*992*50mm(77.05*39.06*1.97inches) |
|
Maximum Surface Load Capacity |
5400pa |
|
Hail |
maximun diameter of 25mm with impact speed of 23m-s-1 |
|
Temperature Range |
-40°C to + 85°C |
|
Weight |
23.0kg(50.7bs) |
We manufacture mini solar panel
Shape: square, rectangle, triangle, tetragonum(parallelogram, rhombus, trapezoid), round, fanshaped,
arch, circle and polygon.
solar cell: poly or mono high efficiency of 16.5%-23%
service life: 5-7years(PET mini solar panel)
usage: our clients use the panel for solar lighting-solar lamps, solar garden lights, solar lantern ect., solar
charger and thousands of solar applications.
specification: Pm: 0.01W to 200W, Vmp: 0.5W to 72V Imp: 0.02A to 10A
FAQ:
Q. Why choose Ollin PV products?
A. Ollin PV start produce solar produce since 2008, with strictly quality control, our products enjoy high
reputation in European country.
Q. Can Ollin PV offer design service according to customer's requirement.
A. Ollin PV have experience R&D team to design various kind of solar panel for different products.
As so far 70% of our order are customed products.
Q. What kind of information should i supply to Ollin PV for customed solar panel?
A. Customer's requirement Power, Voltage, panel size, lamination method.
Q. How can i get sample for quality test?
A. 1.PI confirmation
2. Sample charge arrangement
3. Sample production and inspection
4. Send to customer by DHL/UPS/Fedex
Q: How long it will takes for get samples?
A: If the sample if ready stock, we will send it out within 2 work days.
If out of stock,it will take around 7 work days for production.
|
|
