| Brand Name: | OLLIN PV |
| Model Number: | OL-72M-100 |
| MOQ: | one unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

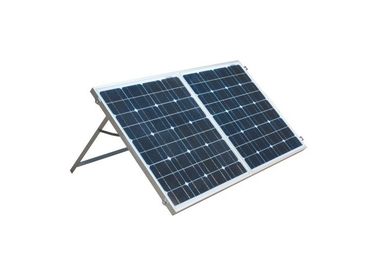

Mono folding solar panel 100Watt Ideal for hiking camping and military use off-grid solar panel system
Solar Module
1. Rated Maximum Power 100W
2. Current at Pmax (lmp) 5.58A
3. Volatage at Pmax (Vmp) 17.4V
4. Short- Circuit Current(lsc) 5.96A
5. Open- Circuit Voltage( Voc) 21.4V
6. Max System V 1000V
7. Max Senes Fuse Rating 10A
8. Application Class A
9. Nominal Operating Cell Temp -40 ℃ TO+85℃
10. Widely used for camping ,travel,adventure and other fields of outdoors and charge for DC 12v/24v/48v battery.Included controller,cable,alligator clip,connectors,protection conners and strong supporting leg single bag.
11. Providing special design.
12. Module efficiency : 16%
13.Warranty : 12 years/90%,25 years/80%, guaranteed 10years material and workmanship
14. Tolerance : Guatanteed tolerance,different model with diffetent tolerance,and delivers higher outputs reliably
15. Excellent performance under low light conditions
16. Load test: module certified to wind and snow loads
17.Anti-reflective,hydrophobic layer with light absorption and minimal surface dust
| Type | Folded size | Weight | Specification | ||||
| Max-power | Volatage at Pmax | Current at Pmax | Open- Circuit Voltage |
Short- Circuit Current |
|||
| Module | MM | KG | W | V | A | V |
A |
| OLPV-200W | 1200*540*70 | 20 | 200 | 18 | 10.53 | 22 |
11.37 |
| OLPV-190W | 190 | 18 | 10.15 | 22 |
10.96 |
||
| OLPV-180W | 180 | 18 | 9.62 | 22 |
10.38 |
||
| OLPV-170W | 1000*540*70 | 16 | 170 | 18 | 9.44 | 22 |
10.2 |
| OLPV-160W | 160 | 18 | 8.89 | 22 |
9.6 |
||
| OLPV-150W | 150 | 18 | 8.33 | 22 |
9 |
||
| OLPV-120W | 810*540*70 | 14 | 120 | 18 | 6.67 | 22 |
7.2 |
| OLPV-110W | 110 | 18 | 6.11 | 22 |
6.6 |
||
| OLPV-100W | 610*540*60 | 10 | 100 | 18 | 5.56 | 22 |
6 |
| OLPV-90W | 90 | 18 | 5 | 22 |
5.4 |
||
| OLPV-80W | 80 | 18 | 4.44 | 22 |
4.8 |
||
| OLPV-60W | 420*540*60 | 9 | 60 | 18 | 3.33 | 22 |
3.6 |
100W Polycrystalline Solar Suitcase is a plug and play system. With an 20A PWM Controller and 10 feet of wiring separating your controller and battery you will have nothing to complain about. The 20A controller is compatible with 12V and 24V systems and has an easy to read LCD display. Thanks to the integrated temperature sensor, charging for your batteries is more accurate since it automatically accounts for proper temperature compensation. The 100W Polycrystalline Solar Suitcase is integrated with highly efficient polycrystalline panels, sturdy aluminum stands, and a handy traveling bag, making this a perfect portable solar system.
Rated current: 20A
System voltage: Automatic recognition of 12 V/ 24 V
Max. Solar energy input voltage: <55V
Max. voltage at the battery end: <35V
Overvoltage protection: 17.0V; ×2/24V
Equalizing charging voltage: 14.6V; ×2/24V
Boost charging voltage : 14.4V; ×2/24V
Floating charging voltage : 13.8V; ×2/24V
Charging recovery voltage: 13.2; ×2/24V
Over-discharge recovery voltage: 12.6V; ×2/24V
Over-discharge voltage: 11.1V; ×2/24V
Equalizing charging interval: 30days
Equalizing charging time: 1H
Boost charging time: 2H
Temperature compensation: -3.0mV/℃/2V
Light control voltage : Light control on 5V, ×2/24V
Light control voltage : Light control on 6V, ×2/24V
Light control judgment time: 1minute
Operating temperature : -25℃ to +55℃
IP protection degree : IP30
| Specifcation | |
| Related power | 100W |
| Vop | 17.9V |
| Working current (Iop) | 5.59A |
| Output Tolerance | ±3% |
| Temperate coefficient of Isc | (010+/- 0.01 )%/ ℃ |
| Temperate coefficient of Voc | - (0.38 +/-0.01 )%/ ℃ |
| Temperate coefficient of power Voc | -0.47%/℃ |
| Temperature range | -40℃to +80℃ |
| Frame and leg | Heavy duty aluminum |
| SLA Battery Voltage | 12V |
| Dimensions (L x W x H)mm | 690*510*73mm(27.3*20.16*2.9in) |
| Weight (kgs) | 11.9kgs(26.25lbs) |
| Notes | ||
|
||
Where there is sunlight ,there is power supply!
The foldable solar panel kit with integrated charge controller can charge a battery directly and also a usb output to charge mobile phones, tablets and digital camera. This kit bring mobile solar power for RV, caravans, motor homes, trucks, golf car, boats as well as all the outdoor activities..
The foldable solar panel kit with high efficiency solar cell which can generate maximum power in the fix area and aluminum frame and supporting bracket, easy to install to absorb the sunlight, just plug and play.
Company Profile:
We are a professional manufacturer specialized in Solar Panels with more than 7 years of experience. Our main products include: Mono and Poly Solar Panel, Solar power system, Solar charger controller, Inverters, Solar LED lights, and so on.
What we can provide: High quality and very competitive price, fast delivery and best service!
A trustable and reliable supplier for your business. We have already exported our products around the world includes Russian, Middle East, South American, Southeast Asia and so on.
For any details, please don't hesitate to contact me any time!
FAQ
• Are you manufacturer or trading company?
--- we are a manufacturer & system integrator since Jan 2008.
• What kind of certification do you have?
--- Power from 3W to 315W with TUV,IEC61215/IEC61730,CEC,CE,PID,ISO
• What is the warranty of solar panels?
--- 5-year warranty on material and workmanship,90% power output in 10 years,20% in 25 years
• Can you quote me the best price?
---We need more information about your demands, such as the power/material/Qty/etc, then We can
suggest the suitable type and quote the best price for you.
• How do I get solar panel from ollin and Where can I get further information?
--- Please visit our website and send us email or call us.
|
|
