| Brand Name: | OLLIN PV |
| Model Number: | OL-72M-80 |
| MOQ: | one unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |
1. High efficiency 80W ,fabric folding solar panel
2. Light weight, portable to take out.
3. 22% high effieciency solar cells
4. 600D PVC coating fabric material
5. connector: 0.3-0.5M two connector wire/ MC4 connectors/ Alligator clip/ DC line with SAE connectors. (as customer's request)
6. Tolerance : Guatanteed tolerance,different model with diffetent tolerance,and delivers higher outputs reliably
7. Excellent performance under low light conditions
8. Load test: module certified to wind and snow loads
9.Anti-reflective,hydrophobic layer with light absorption and minimal surface dust
Parameters Table
| Item |
portable PV solar panel |
|||||
| Solar cells : | Sunpower solar cells | |||||
| Max-power | 18W | 30W | 50W | 60W | 80W | 100W |
| Power Tollerance | 0 to +2W | |||||
| Voltage at Pmax (Vmp) | 19.8V | 17.60V | 17.60V | 34.65V | 15.40V | 17.80V |
| Current at Pmax(Imp) | 0.91A | 1.70A | 2.84A | 1.73A | 5.20A | 5.62A |
| Open-Circuit Voltage(Voc) | 23.4V | 20.80V | 20.80V | 40.95V | 18.20V | 21.00V |
| Short-Circuit Current(Isc) | 1.82A | 1.82A | 3.04A | 1.85A | 5.57A | 6.01A |
| Maximum system voltage(VDC) | 1000(IEC), 600(UL) | |||||
| Cell Efficiency | 20.30% | 19.20% | 21.30% | 20.30% | 19.5% | 21.3% |
| Moudule Efficiency | 18.62% | 17.05% | 18.82% | 19.00% | 17.3% | 19.57% |
| No. of Bypass Diodes (pcs.) | 3 | |||||
| Test situation: | ||||||
| Temperature coefficients of Pmax | -0.45%/ ℃ | |||||
| Temperature coefficients of Voc | -0.34%/ ℃ | |||||
| Temperature coefficients of Isc | 0.05%/ ℃ | |||||
| Nominal Operating Cell Temperature | 45±2℃ | |||||
| PS | *STC Conditions (1000W/m*m ; 1.5 AM and 25℃ Cell temperature) | |||||
| Type | Folded size | Weight | Specification | ||||
| Max-power | Volatage at Pmax | Current at Pmax | Open- Circuit Voltage |
Short- Circuit Current |
|||
| Module | MM | KG | W | V | A | V |
A |
| OLPV-200W | 1200*540*70 | 20 | 200 | 18 | 10.53 | 22 |
11.37 |
| OLPV-190W | 190 | 18 | 10.15 | 22 |
10.96 |
||
| OLPV-180W | 180 | 18 | 9.62 | 22 |
10.38 |
||
| OLPV-170W | 1000*540*70 | 16 | 170 | 18 | 9.44 | 22 |
10.2 |
| OLPV-160W | 160 | 18 | 8.89 | 22 |
9.6 |
||
| OLPV-150W | 150 | 18 | 8.33 | 22 |
9 |
||
| OLPV-120W | 810*540*70 | 14 | 120 | 18 | 6.67 | 22 |
7.2 |
| OLPV-110W | 110 | 18 | 6.11 | 22 |
6.6 |
||
| OLPV-100W | 610*540*60 | 10 | 100 | 18 | 5.56 | 22 |
6 |
| OLPV-90W | 90 | 18 | 5 | 22 |
5.4 |
||
| OLPV-80W | 80 | 18 | 4.44 | 22 |
4.8 |
||
| OLPV-60W | 420*540*60 | 9 | 60 | 18 | 3.33 | 22 |
3.6 |
| Specifcation | |
| Related power | 80W |
| Vop | 17.9V |
| Working current (Iop) | 4.44A |
| Output Tolerance | ±3% |
| Temperate coefficient of Isc | (010+/- 0.01 )%/ ℃ |
| Temperate coefficient of Voc | - (0.38 +/-0.01 )%/ ℃ |
| Temperate coefficient of power Voc | -0.47%/℃ |
| Temperature range | -40℃to +80℃ |
| Frame and leg | Heavy duty aluminum |
| SLA Battery Voltage | 12V |
| Dimensions (L x W x H)mm | 600*510*73mm(23.7*20.2*28.9in) |
| Weight (kgs) | 10.7kg(23.6lbs) |
Where there is sunlight ,there is power supply!
The foldable solar panel kit with integrated charge controller can charge a battery directly and also a usb output to charge mobile phones, tablets and digital camera. This kit bring mobile solar power for RV, caravans, motor homes, trucks, golf car, boats as well as all the outdoor activities..

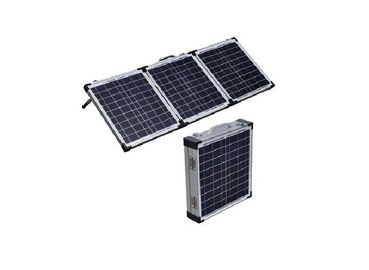

The foldable solar panel kit with high efficiency solar cell which can generate maximum power in the fix area and aluminum frame and supporting bracket, easy to install to absorb the sunlight, just plug and play.
FAQ
• Are you manufacturer or trading company?
--- we are a manufacturer & system integrator since Jan 2008.
• What kind of certification do you have?
--- Power from 3W to 340W Mono and Poly solar panel
• What is the warranty of solar panels?
--- 3-year warranty on material and workmanship,90% power output in 10 years,20% in 25 years
• Can you quote me the best price?
---We need more information about your demands, such as the power/material/Qty/etc, then We can
suggest the suitable type and quote the best price for you.
• How do I get solar panel from ollin and Where can I get further information?
--- Please visit our website and send us email or call us.
|
|
