| Brand Name: | OLLIN PV |
| Model Number: | OL-36M-150 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

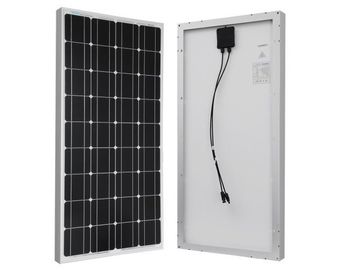

150Watt 12V Solar Panel with white and black Metal frame use for Military signaling applications
Materials of solar panel
1). Solar Cell------Poly-crystalline solar cell 156*156mm
2). Front Glass-------3.2mm, high transmission, low iron, tempered glass
3) .EVA-------excellent anti-aging EVA
4).TPT-------TPT hot seal made of flame resistance
5). Frame------anodized aluminum profile
6). Junction Box-------IP65 rated, high quality, with diode protection
Superiority: high quality anodized aluminum frame, high efficiency long life, easy installation, strong wind resistance, strong hail resistance.
Specifications:
| Module Type | OLPV130W | OLPV140W | OLPV150W | OLPV160W | OLPV165W |
| Maximum power | 130 W | 140 W | 150 W | 160 W | 165 W |
| Max power voltage | 17.50 V | 17.70 V | 17.90 V | 18.10 V | 18.20 V |
| Max power current | 7.43 A | 7.92 A | 8.38 A | 8.84 A | 9.06 A |
| Open circuit voltage | 21.50 V | 21.70 V | 21.90 V | 22.10 V | 22.30 V |
| Short circuit current | 7.96 A | 8.49 A | 9.01 A | 9.53 A | 9.74 A |
| Module Efficiency | 13.13% | 14.14% | 15.15% | 16.16% | 16.67% |
| Power Tolerance | -0~+5W | -0~+5W | -0~+5W | -0~+5W | -0~+5W |
| Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||||
| Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||
| Temperature coefficients of Isc | +0.049% /℃ | ||||
| Temperature coefficients of Voc | -0.340% /℃ | ||||
| Temperature coefficients of Pmax | -0.430% /℃ | ||||
| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable. | ||||
What is features of our solar panel?
1). 1.5kw solar panel have 72(6*12)pcs high efficient poly-crystalline silicon cells to component.
2). It has stable electrical performance,low light performance. Its voltage is very stable under diffirent radiation power.
3). High conversion rate,close to the sum of solar cell power prior products.
4). Anodized aluminum alloy frame,beautiful and durable for solar panel.
5). Long time working guarantee,25 years warranty for power output.
6). Manufacturering plant comply with ISO9001.
7). Clean and renewable energy,non-maintenance,free to get power electricity,don't produce any pollution for environment.
FAQ
1. Are you a factory or trading company?
Yes, we are factory, supplying OEM/ODM service.
2. Can you accept OEM service?
Yes, we can. Qty is not the only standard , more qty, less cost.
3. How about your after sales-service?
4. How about your payment terms?
We accept T/T, LC
5. How could I buy the bluetooth speaker I need if there is no price in the website?
A:You can send your inquiry to us about the bluetooth speaker you need, our sales will reply you within 24
hours to help you make the order.
|
|
