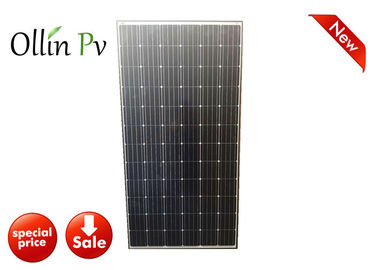

Black Solar PV Panels 320w 300wp monocrystalline solar panel used for lift pump
Product Features
Photovoltaic modules made with unique solar cells
Cells with high conversion efficiency up to 22%
Due to higher efficiency the module are smaller in size than modules made with conventional cells
Black frame for modules are available on special request
Sacredsolar modules are made with high quality materials which qualifies the high reliability of the modules
Designed to charge 12 to 48Volt batteries for off-grid remote power systems
Limited Warranty
Product workmanship warranty: 3 years
Performance warranty: 10 years with maximum loss of 10% & 25 years with maximum loss of 20% on
Power Rating
Specifications:
Solar Panel Parameters 300W
Optimized working voltage 37.08V
Optimized working current 8.09A
Open circuit voltage 45.90V
Short circuit current 8.80A
Nominal power 300W
Operating temperature -40℃ to+85℃
Maximum system voltage 1000VDC(IEC)/600VDC(UL)
Series fuse rated value 20A
Power tolerance ±3%
Cell specification 156×156mm(6inch)
Arrangement quantity 72(6×12)
Solar panel dimension 1956×992×50mm
Weight 23.0kg
Glass specification 3.2mm(0.13inch) tempered glass
Frame Anodised aluminium alloy
Rated operating temperature 45±2℃
Pmax temperature parameter -(0.48±0.05)%/℃
Voc temperature coefficient: -(0.34±0.1)%/℃
Isc temperature coefficient 0.04±0.01%/℃
Notic:Data under standard testing condition (STC):1000W/㎡,AM1.5,25℃.
Black Frame Monocrystalline Poly Solar Panel 10W-320w
The specifical character
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
***** FAQ *****
♦ What's your payment terms ?
T/T, Letter of Credit, Western Union, Paypal, etc .
♦ What's your minimum order quantity ?
1 Unit
♦ Could you send free samples ?
Your samples fee will be returned when you place bulk order
♦ What's your delivery lead time ?
15-25 days, it is up to your order quantity and your stock. If in stocks, once you make the payment ,
your products will be sent whithin 2 days
♦ What;s your price list and discount ?
The Above price is our wholesale price, if you'd like to know more our discount policy, please free free to contact us mobile phone +86 15236163105
6. Can we print our own logo ?
Yes
