| Brand Name: | OLLIN PV |
| Model Number: | OL-36M-20 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

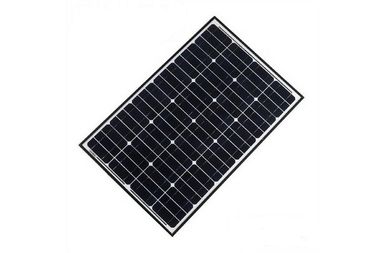

Jinko brand Solar cells 20watt 30watt 40watt mono Black Solar PV Panels used for Solar Traffic Signals Lights
Features
1. High cell's efficiency for long term output stability and reliability
2. Rigorous quality control to meet highest international standards
3. High transmittance,low iron tempered glass cover with enhanced stiffness and impact
resistance
4. Outstanding electrical performance under high temperature and low irradiance ,cloudy
weather conditions
5. Advanced encapsulation material provide efficient protection from the severest environment
conditions
6. EL test and Flash test for finished panel
7. Positive tolerance , 0~5w
Electrical Characteristics
| OLLIN-35P-45P | |||||||
| Monocrystalline Solar Module | |||||||
| Mechanical Data | |||||||
| Cell type | Monocrystalline | ||||||
| No.of cells | 36 in series(4*9) | ||||||
| Dimensions | 625x530x25mm | ||||||
| Weight | 4kg | ||||||
| Electrical Data | |||||||
| Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5) | |||||||
| Power | 35WP | 40WP |
45WP |
||||
| Open circuit voltage(Voc) | 21.5V | 21.5v |
21.6V |
||||
| Max. power voltage(Vmp) | 17.46V | 17.48V |
17.5V |
||||
| Short circuit current(Isc) | 2.48A | 2.56A |
2.74A |
||||
| Max. power current(Imp) | 2.01A | 2.29A |
2.58A |
||||
| A grade power Tolerance | ± 3% | ||||||
| Max.system voltage | 1000V | ||||||
| Operating temp. | —40℃~80℃ | ||||||
| Temperature coefficients of Pmax | -0.47% /℃ | ||||||
| Temperature coefficients of Voc | -0.38% /℃ | ||||||
| Temperature coefficients of Isc | +0.1% /℃ | ||||||
You own the sun. Well, not exactly, but you do have the right to its power. Why not put it
good use? With solar technology, you can harness the sun's energy and turn your rooftop
into a power plant.
About Payment
We provided Trade Assurance service
We also accept payment by T/T; LC, Paypal
We Provide OEM Services
We can do OEM for your brand (print your logo ). And we can make product according to
your design .
The processing method ,the size ,the quality etc ,will all follow your requirement .
We do OEM for a lot of the world's leading brands ,we have rich experience in production.
We have molds in varieties ,and we have strict products quality control system.
We have a strong R&D team, to develop new products according to the sample you provided.
Is solar power difficult to use?
Although the production of solar panels incorporates a high-tech manufacturing process, it is
really very easy to use a photovoltaic system. Solar panels have no moving parts to wear out,
they can be used alone or in combination with other energy sources, and they are silent,
reliable and long lasting.
What can you power with Photovoltaics?
A properly designed photovoltaic system can supply electricity for many applications, from
small remote lighting needs to megawatts of power for large utility companies. An advantage
of photovoltaic power is that it can do anything a traditional power generator can do, only
without consuming pollution-causing fuel, or requiring noisy motors.
What is a PV system?
A PV system consists of all the equipment and materials needed to generate solar energy,
including solar panels (often called modules), a support structure, wiring, an inverter, a meter
and other equipment as required by a specific application. JUST-SOLAR's PV system for
commercial buildings, and ET Solar system for residential uses are examples of complete PV
systems.
video
video
video
|
|
