| Brand Name: | OLLIN PV |
| Model Number: | OL-72M-300 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

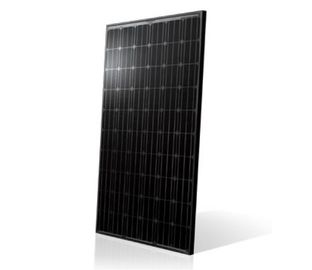

310Watt Black Solar PV Panels used in Solar Agricultural water Pumping with Metal bracket
Structure of Solar Panel:
1. Front Material: 3.2MM low-iron toughened glass
2. Back Material: White TPTTPE
3. Bondable Barrier Film: EVA
4. Frame: Aluminum alloy plated with oxidation film
5. The warranty of a standard about 25 years/ 80% efficiency on maximum output
10 years / 90% efficiency on maximum and 5 years warranty on workmanship
6. Module size can be changed according to the customers' requirement
7. Standard testing conditions: Am1.5 25º C 1000W/m2
Specification sheet
| Type | M325 | M320 | M315 | M310 | 305 | M300 | M295 | M290 | M285 | M280 |
| Wattage(W) | 325 | 320 | 315 | 310 | 305 | 300 | 295 | 290 | 285 | 280 |
| Open Circuit Voltage(V) | 45.30 | 45.20 | 45.10 | 45 | 44.9 | 44.8 | 44.6 | 44.5 | 44.4 | 44.2 |
| Short Circuit Current(I) | 8.87 | 8.79 | 8.71 | 8.97 | 8.87 | 8.8 | 8.73 | 8.67 | 8.6 | 8.49 |
| Maximum Power Voltage(V) | 37.00 | 36.80 | 36.60 | 36.4 | 36.2 | 36.1 | 35.9 | 35.8 | 35.7 | 35.5 |
| Maximum Power Current(I) | 8.78 | 8.70 | 8.61 | 8.52 | 8.43 | 8.32 | 8.22 | 8.11 | 7.99 | 7.89 |
| Cell Efficiency | 18.90% | 18.60% | 18.31% | 18.02% | 17.73% | 17.44% | 17.15% | 16.86% | 16.57% | 16.28% |
| Module Efficiency | 16.63% | 16.48% | 16.23% | 15.97% | 15.71% | 15.45% | 15.20% | 14.94% | 14.68% | 14.42% |
| Maximum System Voltage | DC1000V | |||||||||
| Temperature Coefficient of Voc | -0.27%/°C | |||||||||
| Temperature Coefficient of Isc | +0.045%/°C | |||||||||
| Temperaturecoefficient of Pmax | -0.408%/°C | |||||||||
| Maximum Series Fuse Rating | 15A | |||||||||
| Number of Cells | 72(6*12) Mono Crystalline silicon, 156*156mm(6 inches) | |||||||||
| Junction Box | Ip67 rated/with 6 bypass diodes | |||||||||
| Cable | 4.0mm2 (0.006inches2,symmetrical lengths(-)1100mm(43.30inches)and(+)1100mm(43.30inches)) |
|||||||||
| Tempered Glass | 3.2mm(0.13inches)tempered glass | |||||||||
| Cell Encapsulation | EVA(Ethylene-vinyl-Acetate) | |||||||||
| Back Sheet | composite film | |||||||||
| Frame | Anodized aluminum alloy | |||||||||
| Dimension | 1957*992*50mm(77.05*39.06*1.97inches) | |||||||||
| Maximum Surface Load Capacity | 5400pa | |||||||||
| Hail | maximun diameter of 25mm with impact speed of 23m-s-1 | |||||||||
| Temperature Range | -40°C to + 85°C | |||||||||
| Weight | 23.0kg(50.7bs) | |||||||||
What is a PV system?
A PV system consists of all the equipment and materials needed to generate solar energy, including solar
panels (often called modules), a support structure, wiring, an inverter, a meter and other equipment as
required by a specific application. JUST-SOLAR's PV system for commercial buildings, and ET Solar
system for residential uses are examples of complete PV systems.
What is a solar module?
Solar modules are series of solar cells, wired together and enclosed protect them from the environment.
They are often referred to as in self-contained glass units to solar panels as well.
Q1: How do you control the production quality?
A :1. All products will have 5 layer's of QC before delivery.
2. Checking the raw material after they arrived in our factory.
3. Checking all the details while the production line operated.
4. Testing the products after they’re finished from productions.
5. Checking all the products and cartons after they’re packed.
6. Some products will have different QC processes but strict also.
Q2 : Do you accept OEM/ODM?
A : ODM&OEM are warmly welcomed !!!
Q4: Can the price be cheaper?
A: Of course, you will be offered a good discount for big amount.
Q5: What is your terms of payment?
A:1. Sample: 100% of the sample cost before sampling.
2. Mass Production: 30% deposit in advance, 70% balance when finished.
3. Payment terms: usually T/T, also support LC, PayPal, etc
Q6: What’s the delivery time?
A: 1.Sample ready in 7-15 days, depends on the requests.
2. Mass production ready in 15-30 days, depends on the qty & factory’s producing.
