| Brand Name: | OLLIN PV |
| Model Number: | OL-36M-30 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

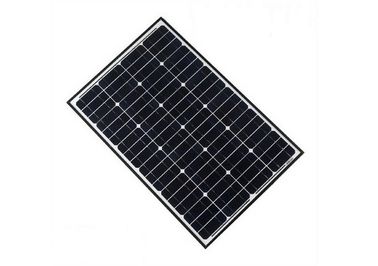

Solar Traffic Signals Lights , Power for Remote Terminal Units 30watt poly Black Solar PV Panels
Features:
Photovoltaic modules made with unique solar cells
Cells with high conversion efficiency up to 22%
Due to higher efficiency the module are smaller in size than modules made with conventional cells
Black frame for modules are available on special request
Sacredsolar modules are made with high quality materials which qualifies the high reliability of the modules
Designed to charge 12 to 48Volt batteries for off-grid remote power systems
Limited Warranty
Product workmanship warranty: 20 years
Performance warranty: 10 years with maximum loss of 10% & 25 years with maximum loss of 20% on Power Rating
Electrical Characteristics
| ITEM NO | 30W/18V |
| MONO or POLY | poly |
| Maximum power (Wp) | 30wp |
| Maximum power voltage (V) | 18 |
| Maximum power current (A) | 1.66 |
| Open circuit voltage (V) | 21.6 |
| Short circuit current (A) | 1.79 |
| Number of cells (Pcs) | 36 |
| Size of module (mm) | 650*340*23 |
| Brand Name of Solar Cells | HT |
| Maximum system voltage (V) | 715 |
| Temperature coefficients of Isc (%) | 0.065+/-0.015%/°C |
| Temperature coefficients of Voc (%) | -(2.23+/-0.1)mv/ °C |
| Temperature coefficients of Pm (%) | -(0.5+-0.05)/ °C |
| Temperature coefficients of Im (%) | +0.1/ °C |
| Temperature coefficients of Vm (%) | -0.38/ °C |
| Temperature Range | -40°C~+85°C |
| Tolerance Wattage (e.g. +/-5%) | +/-5% |
| Surface Maximum Load Capacity | 60m/s(200kg/sq.m) |
| Allowable Hail Load | steel ball fall down from 1m height |
| Weight per piece (kg) | 1.1 |
| Length of Cables (mm) | 1m |
| Cell Efficiency (%) | more than13% |
| Module Efficiency (%) | more than 8% |
| Output tolerance (%) | +/-5% |
| Frame (Material, Corners, etc.) | Aluminum |
| Standard Test Conditions | AM1.5 100mw/cm2 25°C |
| Warranty | 2 years product warranty and 25years 80% of power |
| FF (%) | 75% |
| Packing | 10PCS/ CTN |
| Unit Price |
Applications:
Telecommunication
Water pumping for various agriculture and aquaculture applications
Catholic protection
Lighting system for emergency use and railroad
Solar light
Desalination systems
Electricity for remote villages
Security cameras
Remote sensors
Telemetry equipments
Home generator systems
Terms of Payment
| Value of goods | Terms of Payment |
| Less 5,000 dollars | 100%T/T advance |
| 5,000-20,000 dollars | 30% T/T advance |
| More 20,000 dollars | T/T or L/C at sight |
