| Brand Name: | OLLIN PV |
| Model Number: | OL-36P-160 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

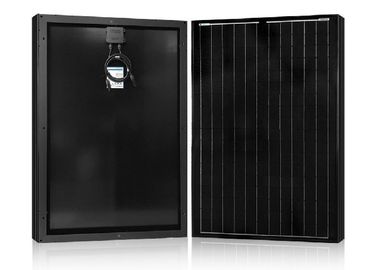

160Watt Black Solar PV Panels used for Solar water Pumping Solar Traffic Signals Lights
Product Description
--- First-class production technology and packaging technology.
--- Adopting the world’s leading technology of silicon and polycrystalline power, higher conversion efficiency.
Beautiful, stable, easy to take down the anodic aluminum frame electric degrees and has a wind resistant,
anti-snow function.
--- After the minus reflection process of the battery surface, it increases the absorption rate.
--- By the high transmittance, low iron tempered glass, antiaging of the EVA(polyethylene-vinyl acetate), high
performance crystalline 6.silicon solar cells, good weather resistance TPT(fluoroplastics composite
membrane) by pyramid, has a good weather resistance and anti-UV, hail, water-proof capacity.
--- Built-in bypass diode inside the junction box, which could prevent the effects dark spots of local damage
to cells.
Specification sheet
| Module Type | OLPV130W | OLPV140W | OLPV150W | OLPV160W | OLPV165W |
| Maximum power | 130 W | 140 W | 150 W | 160 W | 165 W |
| Max power voltage | 17.50 V | 17.70 V | 17.90 V | 18.10 V | 18.20 V |
| Max power current | 7.43 A | 7.92 A | 8.38 A | 8.84 A | 9.06 A |
| Open circuit voltage | 21.50 V | 21.70 V | 21.90 V | 22.10 V | 22.30 V |
| Short circuit current | 7.96 A | 8.49 A | 9.01 A | 9.53 A | 9.74 A |
| Module Efficiency | 13.13% | 14.14% | 15.15% | 16.16% | 16.67% |
| Power Tolerance | -0~+5W | -0~+5W | -0~+5W | -0~+5W | -0~+5W |
| Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||||
| Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||
| Temperature coefficients of Isc | +0.049% /℃ | ||||
| Temperature coefficients of Voc | -0.340% /℃ | ||||
| Temperature coefficients of Pmax | -0.430% /℃ | ||||
| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable. | ||||
What's the advantages of solar energy?
1.Solar energy is a clean and renewable resource.
2.No pollution, no noise and no effect on ecological balance during use.
3.High efficiency of energy conversion and long time sustainable use.
4.Low maintenance and repair costs.
5.Wide range of applications.(home and outdoor, industrial and commercial)
6.Low use of environmental requirements.(-30ºC~+80ºC, just need sunshine)
7.Easy to install and use.
Q1: How do you control the production quality?
A :1.All products will have 5 layer's of QC before delivery.
2. Checking the raw material after they arrived in our factory.
3. Checking all the details while the production line operated.
4. Testing the products after they’re finished from productions.
5. Checking all the products and cartons after they’re packed.
6. Some products will have different QC processes but strict also.
Q2 : Do you accept OEM/ODM?
A : ODM&OEM are warmly welcomed !!!
Q4: Can the price be cheaper?
A: Of course, you will be offered a good discount for big amount.
Q5: What is your terms of payment?
A:1. Sample: 100% of the sample cost before sampling.
2. Mass Production: 30% deposit in advance, 70% balance when finished.
3. Payment terms: usually T/T, also support LC, PayPal, etc
Q6: What’s the delivery time?
A: 1.Sample ready in 7-15 days, depends on the requests.
2. Mass production ready in 15-30 days, depends on the qty & factory’s producing.
