| Brand Name: | OLLIN PV |
| Model Number: | OL-10M-0.25w |
| MOQ: | 1 piece/unit |
| Price: | negotiation |
| Delivery Time: | 20DAYS |

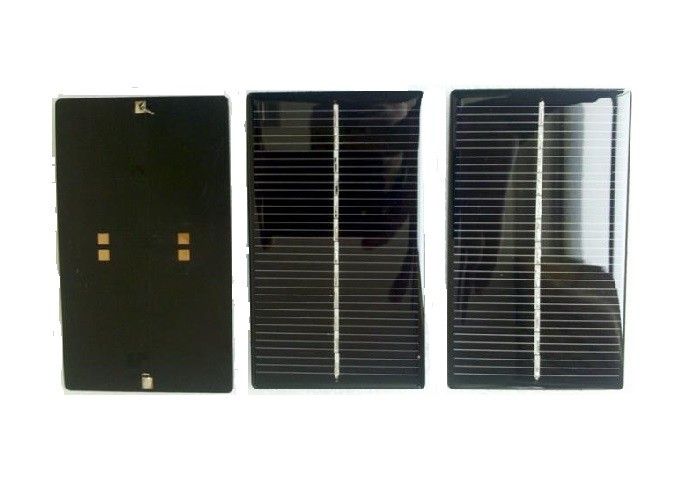

DIY solar cell solar module Epoxy Resin Solar Panel charged Electric flashlight car toys battery
Product Description
High module conversion efficiency
(up to 16%), through superior cell technology and
leading manufacturing capability
Positive tolerance
Guaranteed tolerance from ±3% ensures
power output reliability
Excellent weak light performance
Excellent performance under low light environments
(mornings, evenings, and cloudy days)
Withstand high wind and snow loads
Entire module certified to withstand high wind loads
(2400 Pascal) and snow loads (5400 Pascal) *
| Item No. | Max Power | Rated Voltage | Output Voltage | Dimension | Net Weight |
| 0.5V100MA | 0.05W | 0.5VDC | 53x18x3mm | 0.003kg | |
| 1V85MA | 0.085W | 1VDC | 30x25x3mm | 0.0022kg | |
| 1.5V400MA | 0.65W | 1.5VDC | Charge for 1.2V Battery | 80x60x3mm | 0.018kg |
| 2V130MA | 0.26W | 2VDC | 54x54x3mm | 0.009kg | |
| 2V50MA | 0.1W | 50x34x3mm | 0.008kg | ||
| 3V120MA | 0.36W | 3VDC | 60x55x3mm | 0.011kg | |
| 5V30MA | 0.15W | 5-5.5VDC | Charge for 3.6V-3.7V Battery | 53x30x3mm | 0.005kg |
| 5V60MA | 0.3W | 68x36x3mm | 0.01kg | ||
| 5V150MA | 0.75W | 99x69x3mm | 0.02kg | ||
| 5.5V50MA | 80x35x3mm | 0.01kg | |||
| 5.5V60MA | 0.3W | 100x28x3mm | 0.01kg | ||
| 5.5V100MA | 0.55W | 84.5x55.5x3mm | 0.018kg | ||
| 5.5V120MA | 0.66W | 80x60x3mm | 0.02kg | ||
| 6.5V90MA | 0.6W | 6-6.5VDC | 120x70x3mm | 0.03kg | |
| 6V100MA | 0.6W | 120x38x3mm | 0.016kg | ||
| 6V330MA | 2W | 136x110x3mm | 0.06kg | ||
| 6V500MA | 3W | 145x145x3mm | 0.07kg | ||
| 6V580MA | 3.5W | 135x165x3mm | 0.077kg | ||
| 6V750MA | 4.5W | 145x145x3mm | 0.07kg |
WHY CHOOSE US?
1. Excellent efficiency, Easy Installation & Maintenance
2. Outstanding performance in Low-Light
3. High transparent, Low-Iron, Tempered Glass
4. Ability to withstand High Wind-Pressure and Snow-Load
5. Advanced module sealing technology to eliminate leakage and frame deformation
6. Ability to meet customized customer's specific requirements
FAQ
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Yuyao city, zhejiang province.
2. Q: How can I visit your factory?
A: Before you visit,please contact us.We will show you the route or arrange a car to pick you up.
3. Q: Do you provide free sample?
A: Commenly we provide paid sample.
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we accept it. And need an Authorization Letter from you.
5. Q: Do you accept custom design on size?
A: Yes, if the size is reasonable.
6. Q: How can I be your agent in my country?
A: Please leave feedback. It's better for us to talk about details by email.
|
|
