| Brand Name: | OLLIN PV |
| Model Number: | OEM |
| MOQ: | 100units |
| Price: | negotiation |
| Delivery Time: | 20days |

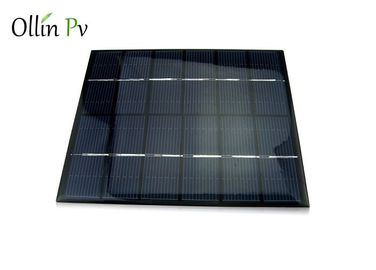

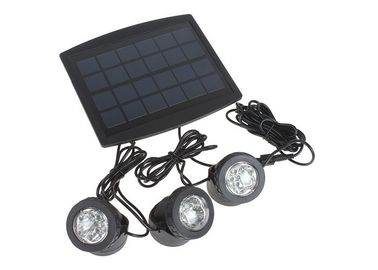

Solar Panel Street Lights Outdoor Security Floodlight Solar Flood Light for Lawn Garden
Features
1) Module efficiency : 16%
2) Warranty : 12 years/90%,25 years/80%, guaranteed 10years material and workmanship
3) Tolerance : Guatanteed tolerance,different model with diffetent tolerance,and delivers higher outputs reliably
4) Excellent performance under low light conditions
5) Module certified to wind and snow loads
6) Anti-reflective,hydrophobic layer with light absorption and minimal surface dust
7) Rich selection of solar power
| ITEM NO | 3W/9V |
| MONO or POLY | poly |
| Maximum power (Wp) | 3wp |
| Maximum power voltage (V) | 9 |
| Maximum power current (A) | 0.33 |
| Open circuit voltage (V) | 10.8 |
| Short circuit current (A) | 0.36 |
| Number of cells (Pcs) | 18 |
| Size of module (mm) | 210*195*18 |
| Brand Name of Solar Cells | HT |
| Maximum system voltage (V) | 715 |
| Temperature coefficients of Isc (%) | 0.065+/-0.015%/°C |
| Temperature coefficients of Voc (%) | -(2.23+/-0.1)mv/ °C |
| Temperature coefficients of Pm (%) | -(0.5+-0.05)/ °C |
| Temperature coefficients of Im (%) | +0.1/ °C |
| Temperature coefficients of Vm (%) | -0.38/ °C |
| Temperature Range | -40°C~+85°C |
| Tolerance Wattage (e.g. +/-5%) | +/-5% |
| Surface Maximum Load Capacity | 60m/s(200kg/sq.m) |
| Allowable Hail Load | steel ball fall down from 1m height |
| Weight per piece (kg) | 1.1 |
| Length of Cables (mm) | |
| Cell Efficiency (%) | more than13% |
| Module Efficiency (%) | more than 8% |
| Output tolerance (%) | +/-5% |
| Frame (Material, Corners, etc.) | Aluminum |
| Standard Test Conditions | AM1.5 100mw/cm2 25°C |
| Warranty | 2 years product warranty and 25years 80% of power |
| FF (%) | 75% |
| Packing | 10PCS/ CTN |
| Unit Price |
| Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||||
| Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||
| Temperature coefficients of Isc | +0.049% /℃ | ||||
| Temperature coefficients of Voc | -0.340% /℃ | ||||
| Temperature coefficients of Pmax | -0.430% /℃ | ||||
| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable. | ||||
Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
>Anti-PID
Glass
>Anti-reflective glass
>Translucency of normal luminance is increased by 2%
>Module efficiency is increased by 2%
>Self-cleaning function
>Service life is as long as 25 years(30 years optional)
Frame
> Conventional frame
>Silver or black frames are optional
>Boost bearing capability and prolong service life
>Serrated-clip design tensile strength
>Seal-lip design-glue injection
Junction box
>Conventional standalone edition and engineering custom edition
>Quality diode ensures module running safety
>IP67 protection level
>Heat dissipation
>Long service life
|
|
